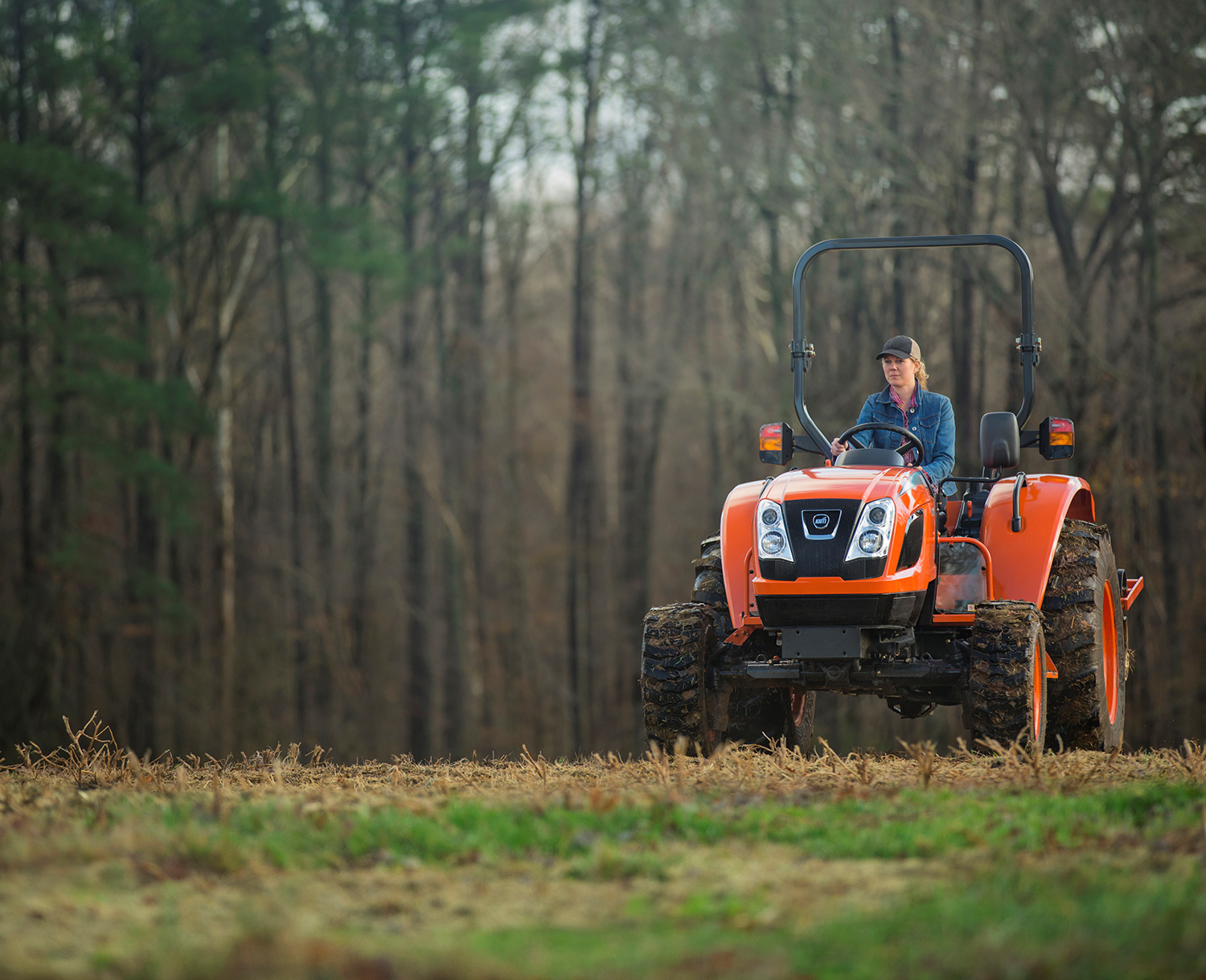

Kioti – NX4510 / NX4510C

The modern and elegant hood design provides the operator with excellent visibility and enables quick and convenient access for daily maintenance. The Torque Compensation feature enables the engine t maintain a consistent and stable torque level under all conditions. The new Common Rail Diesel Engine (CRDI) improves fuel efficiency of 20% while reducing noise levels. With the Eco-friendly Tier 4 engine the NX series offers the operator a quiet work environment with powerful performance.

Categories: , Tags: , ,

Engine Model: 3F183T
Engine Gross Power: 45 hp
Rated Speed: 2600
No. of Cylinders: 3
Fuel Type: Diesel
Aspiration: Turbo Charged
Displacement: 111.4 cu. in.
Fuel Tank Capacity: 14.8 gal.
Transmission Type: Synchronized
Shuttle: Syncro Shuttle
Main Gear: Synchronized
No. of Travel Speeds – Forward / Reverse: 24 x 24
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: .11 mph (forward) & .09 mph (reverse)
Max. Travel Speed of Forward with Ag1 @ Engine rated speed: 15.7 mph (forward) & 13.96 mph (reverse)
PTO Type Trans: Independent
PTO Power: 37.6
Rear PTO Speeds (1st): 540
Mid PTO Speeds: 2000 (optional)
Brakes: Wet Multi Disc
Clutch: Dry Type Single Stage
Length with 3-point hitch: 139.6 in.
Width: 65.6 in.
Height from Top of ROPS Cab: 103.1 in. / 94.1 in.
Wheelbase: 75.6 in.
Ground Clearance: 13.7 in.
Front Tread Ag Tires – Min: 55.2 in.
Rear Tread Ag Tires – Max: 52.1 in.
Turning Radius with Brake: 11.5 ft. / 9.8 ft.
Pump: Gear
Pump Capacity (Max. Flow Rate): 16.5 gpm
Standard Category: Category # 1
Lift Capacity, 24 in. aft of hitch, lb (kg): 3,177 lbs.
Control Type: Position with Draft Control
Weight with Ag Tires: 4,065 lbs. / 4,692 lbs.
