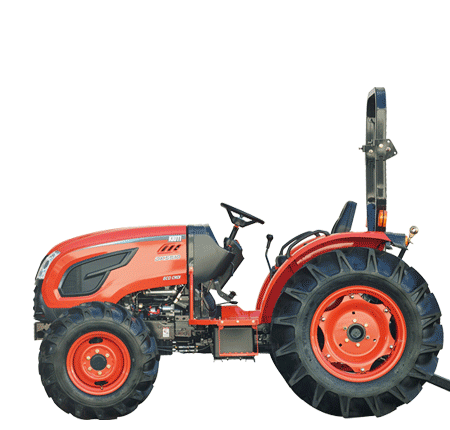

Kioti – DK5010

CRDI Diesel Engine with Daedong ECO Technology
The new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the DK series offers the operator a quiet work environment with powerful performance.

Projection and Working Lamp
With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.

Categories: , Tags: , ,

Engine Model: 3F1863T-50
Front Tread Ag Tires – Min: 49.4 in (1,254 mm)
Rear Tread Ag Tires – Min: 49.3 in (1,251 mm)
Turning Radius with Brake: 8.6 in (2.6 mm)
Total Pump Flow: Pump Type
Main Pump Capacity: 14.5 gpm (55.1 lpm)
3-Point Hitch Standard Category (Optional Category): Category I
Lift Capacity, 24″ aft of hitch, lb(kg): 2,716 lbs. (1,232 kg)
Control Type: Position
Weight with Ag Tires with ROPS: 3373 lbs. (1530 kg)
Ground Clearance: 15.2 in. (387 mm)
Wheelbase: 71.3 in. (1,810 mm)
Height from Top of ROPS: 92 in. (2,338 mm)
Width: 62.8 in. (1,596 mm)
Length with 3-point hitch: 124.3 in. (3,157 mm)
Clutch: Dry Single Plate
Brakes: Wet Multi Disc
Rear PTO Speeds(1st): 540 rpm
PTO Power: 45.6 HP (34 KW)
PTO Type Trans: Independent
Max. Travel Speed of Forward with Ag1 @ Engine rated speed: 17.3 mph (27.9 kph)
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: 1.35 mph (2.17 kph)
No. of Travel Speed Forward / Reverse: 8 x 8
Shuttle: Manual
Transmission Type: Synchronized
Fuel Tank Capacity: 11.9 US Gal (45 l)
Displacement: 111.4 cu.in. (1,826 cc)
Aspiration: Turbo Charged
Fuel Type: Diesel
No. of Cylinder: 3
Rated Speed: 2,600 rpm
Engine Gross Power: 50 HP (37.3 KW)

Additional information

Additional Features

Deluxe Suspension Seat
Ergonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator's manual.

Fender Grip
The fender grip, available on both sides, makes it easier get in and out of the tractor.

Large capacity hydraulic pump
The large capacity hydraulic pump (14.5 gpm) combined with high lift capacity (2,716 lbs) increases productivity.

PTO Cruise
With the electronically controlled engine, the PTO rpm can be maintained at the set value even with variable load conditions.

Tail Lamp
The stylish tail lights improves operator safety by increasing visibility of the operator.

High Ground Clearance
The maximum ground clearance of 15.2 in. makes usage on rocky or uneven terrain simpler.

Center Marker
The center marker on the hood assists with maintaining straight rows.

Power and Tilt Steering
The standard power steering minimize the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of lever, allowing easy adjustment to fit the operator needs.
