PTO Type Trans: Live
PTO Power: 21.8 HP (16.3 kw)
Rear PTO Speeds(1st): 540 rpm
Mid PTO Speeds: 2,000 rpm
Brakes: Wet Multi Disc
Clutch: Dry Dual Stage
Length w/ 3-point hitch: 120.9 in. (3,070 mm)
Width: 55.1 in. (1,400 mm)
Height from Top of ROPS: 99.2 in. (2,520 mm)
Wheelbase: 65.7 in. (1,670 mm)
Ground Clearance: 13.4 in. (340 mm)
Front Tread Ag Tires – Min: 44.6 in (1,132 mm)
Rear Tread Ag Tires – Min: 51.3 in. (1,302 mm)
Turning Radius w/ Brake: 8.0 ft (2.4 m)
Total Pump Flow: 11.7 gpm (44.4 lpm)
3-Point Hitch Standard Category (Optional Category): Cat. 1
Lift Capacity, 24″ aft of hitch, lb(kg): 1,631 lbs (740 kg)
Control Type: Position
Weight w/ Ag Tires w/ ROPS: 2,701 lbs (1,225 kg)
Engine Gross Power: 24.5 HP (18.2 KW)
Rated Speed: 2400
No. of Cylinder: 3
Fuel Type: Diesel
Aspiration: Natural
Displacement: 100.5 cu. (1,647 cc)
Fuel Tank Capacity: 9.0 us gal (34 l)
Transmission Type: Hydrostatic
No. of Travel Speed Forward / Reverse: Infinite / 3 Range
Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0 mph (0 kph)
Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 16.60 mph (26.71 kph)

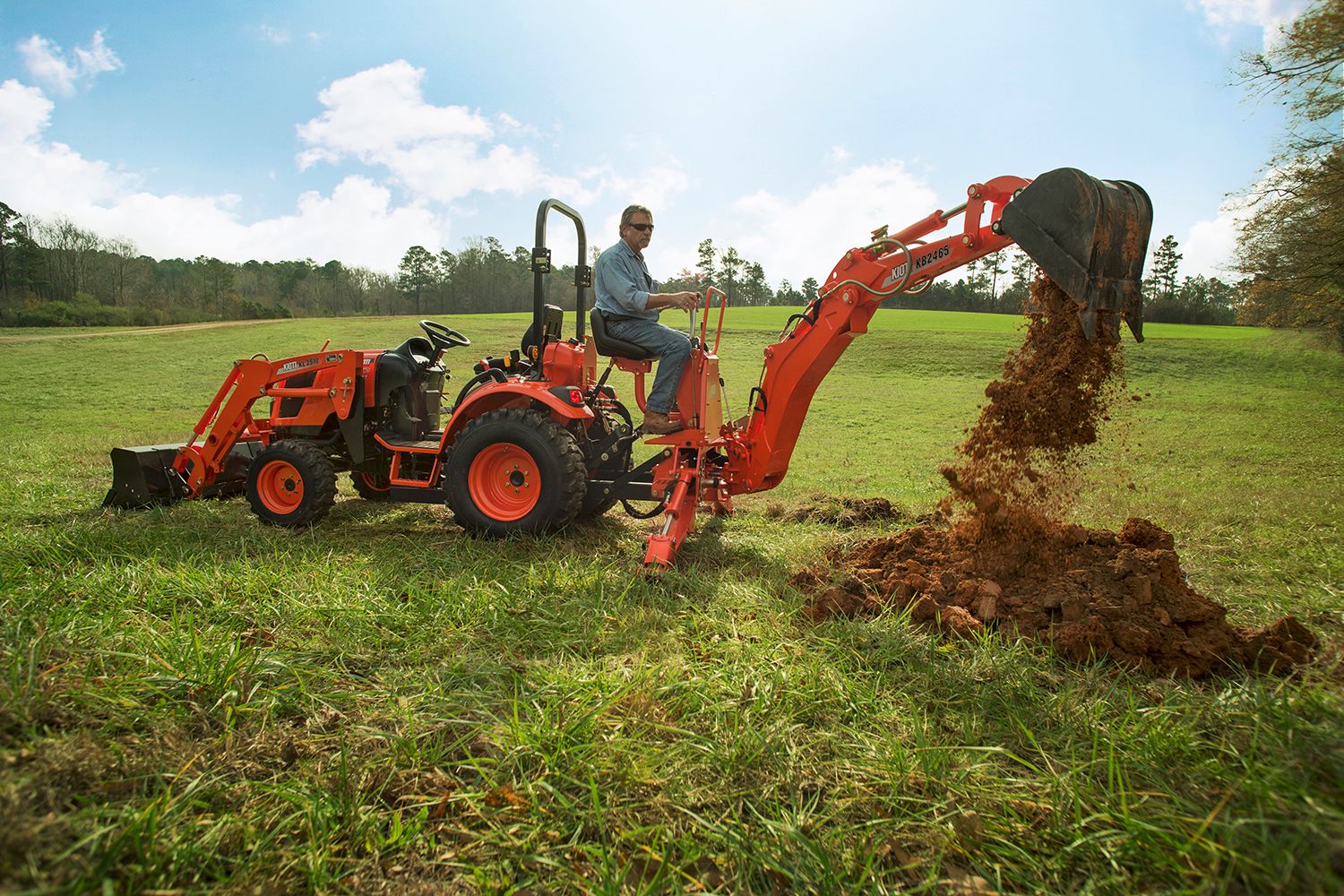

Kioti – CK2620H
Diesel engine with Daedong ECO Technology
The new 24.5 HP ECO friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
High Capacity Hydraulic Pump
The high capacity, efficient tandem hydraulic pump gives you smoother handling in heavy duty working conditions and helps to reduce operator fatigue.
Additional information
Additional Features | Power Steering Deluxe Seat Rear PTO Single Lever Joystick Foldable ROPS Simple Maintenance Center Marker High Ground Clearance Illuminated Dashboard 3-Point Control Lever HST Transmission |
---|
