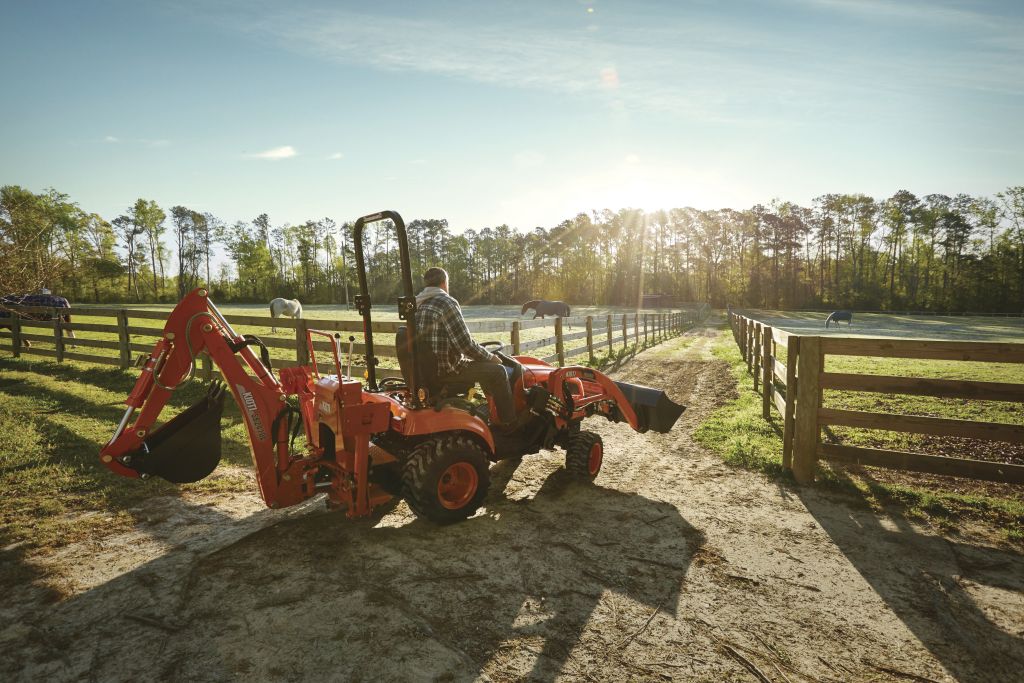

Kioti – CS2510


Distinctive Hood Design
The streamlined hood design improves the visibility for the operator. A vertical opening hood allows for easy access to the air filter, fluid service and inspection locations for fuse box and electrical components.

Categories: , Tags: , ,

Width: 46.7 in (1,185 mm)
Height: 88 in (2,226 mm)
Wheelbase: 55.1 in (1,400 mm)
Ground Clearance: 6.4 in (162 mm)
Front Tread: 45.3 in (1,150 mm)
Rear Tread: 46.7 in (1,185 mm)
Turning Radius: 8.2 ft (2.54 m)
Total Pump Flow: 6.5 gpm 24.6 lpm)
Power Steering Pump Capacity: 6.5 gpm (24.6 lpm)
Standard Category: Category 1
Lift Capacity: 700 lbs (318 kg)
Control Type: Position
Weight: 1,485 lbs (675 kg.f)
Engine Model: S773L
Engine Gross: 24.5 HP (18.3 KW)
Rated Speed: 3000 rpm
Cylinders: 3
Fuel Type: Diesel with Pressurized Radiator
Displacement: 69.0 cu in (1131 cc)
Fuel Tank Capacity: 6.7 gal (25.5 liters)
Transmission Type: HST
Speeds: Infinite, 2 Range
Minimum Speed: 0 mph
Maximum Speed: 10.31 mph (16.6 km/h)
PTO Type Trans: Independent
PTO Power: 19.4 hp
Rear PTO Speeds: 540 rpm
Mid PTO Speeds: 2200 rpm
Brakes: Wet Multi Disk
Length: 99.3 in (2,523 mm)

Additional information

Additional Features

Illuminated Dashboard
The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with low fuel warning lamp.

Twin HST Pedals
Twin HST pedals allow easy and quick forward and reverse with smooth engagement, acceleration, and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use and when doing repetitive tasks.

Premium Diesel Engine
A 24.5 HP optimized combustion diesel engine has large power output yet low fuel consumption. Fluid service and inspection locations are easily accessible to the operator.

Four Wheel Drive
4WD is standard on the CS2510 tractor and a single lever engages the 4WD.

55W lamps are the brightest in this tractor's class.

Foldable ROPS
The standard fold-down roll bar makes it quick and easy to maneuver in low clearance areas.

Left Hand Lever Controls
The HST with HI-LO range lever allows the tractor to overcome a wide range of load tasks. The rear PTO and mid PTO can be controlled separately or together with a simple in-line shifting lever. The height adjustment lever allows the operator to control the mid-mount mower grass cutting height easily.

Right Hand Lever Controls
The wet multi-disk PTO clutch has a simple mechanical engaging lever. The 3 point lower link lever easily operates the 3 point hitch by simply pushing or pulling the lever.

Rear PTO and 3-Pont Hitch
The ergonomically designed work station places operator controls within easy reach to enjoy a comfortable and smooth ride. A retractable seat belt and operator presence switch are included for safety.

12V Power Outlet
The standard 12 volt power outlet is available for accessories.
