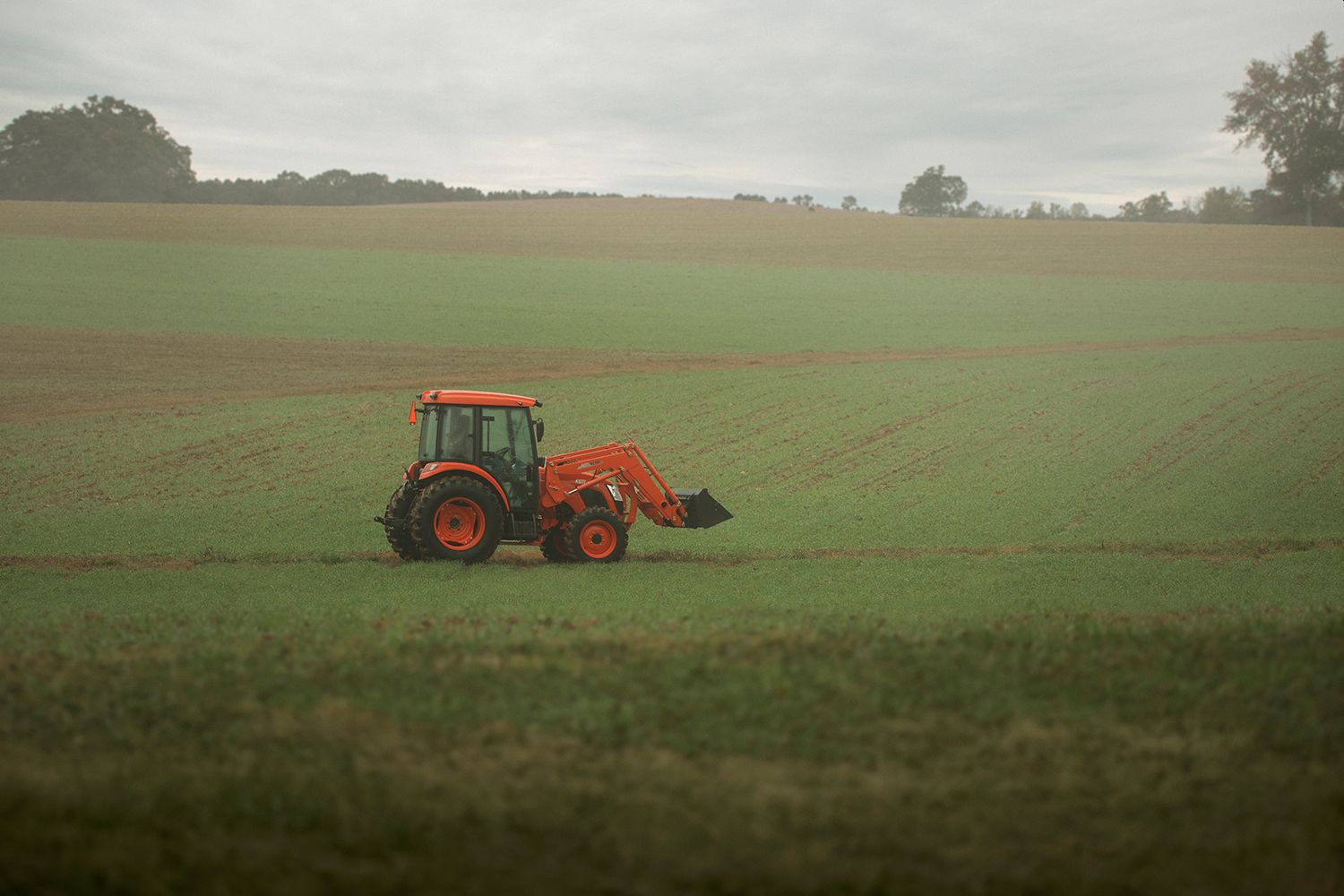

Kioti – CK3520SEHC

Diesel engine with Daedong ECO Technology

The new 39.6 hp (29.5 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.

Categories: , Tags: , ,

Engine Model: 3F-TH4-U
Control Type: Position
Weight with Ag Tires with Cab: 3307 lbs (1500 kg)
3-Point Hitch Standard Category (Optional Category): 1,631 lbs. (740 kg)
Lift Capacity, 24″ aft of hitch, lb(kg): 1,631 lbs. (740 kg)
Total Pump Flow: 11.7 gpm (44.4 L/min)
Turning Radius with Brake: 8 ft. (2.4 m)
Rear Tread Ag Tires – Min: 51.3 in. (1302 mm)
Front Tread Ag Tires – Min: 44.6 in. (1132 mm)
Ground Clearance: 13.4 in. (340 mm)
Wheelbase: 65.7 in. (1,670 mm)
Height from Top of Cab: 91.7 in. (2,330 mm)
Width: 54.5 in. (1,385 mm)
Length with 3-point hitch: 120.9 in. (3,070 mm)
Brakes: Wet Multi Disc
Mid PTO Speeds: 2,000 rpm (Optional)
Rear PTO Speeds(1st): 540 rpm
PTO Power: 31.9 hp (23.8 kW)
PTO Type Trans: Live, Independent
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: 14.86 mph (23.91 kmh)
No. of Travel Speed Forward / Reverse: 3 Range
Transmission Type: Hydrostatic
Fuel Tank Capacity: 9 gal. (34 L)
Displacement: 111.4 cu. in. (1,826 cc)
Fuel Type: Diesel
No. of Cylinder: 3
Rated Speed: 2,600 rpm
Engine Gross Power: 39.6 hp (29.5 kW)
