Kioti – CK2610

Diesel engine with Daedong ECO Technology
The new 24.5 HP ECO friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.

High Capacity Hydraulic Pump
The high capacity, efficient tandem hydraulic pump gives you smoother handling in heavy duty working conditions and helps to reduce operator fatigue.

Categories: , Tags: , ,

Engine Gross Power: 24.5 HP (18.2 KW)
Rated Speed: 2400
No. of Cylinder: 3
Fuel Type: Diesel
Aspiration: Natural
Displacement: 100.5 cu. (1,647 cc)
Fuel Tank Capacity: 9.0 us gal (34 l)
Pre-heating System: 9×3 Manual Transmission
Transmission Type: Manual
Main Gear: Manual
No. of Travel Speed Forward / Reverse: 9F/3R
Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 1.24 mph (1.99 kph)
Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 16.23 mph (26.12 kph)
PTO Type Trans: Live
PTO Power: 22.2 HP (16.6 kw)
Rear PTO Speeds(1st): 540 rpm
Mid PTO Speeds: 2,000 rpm (optional)
Brakes: Wet Multi Disc
Clutch: Dry Dual Stage
Length w/ 3-point hitch: 120.9 in. (3,070 mm)
Width: 55.1 in. (1,400 mm)
Height from Top of ROPS: 99.2 in. (2,520 mm)
Wheelbase: 65.7 in. (1,670 mm)
Ground Clearance: 13.4 in. (340 mm)
Front Tread Ag Tires – Min: 44.6 in (1,132 mm)
Rear Tread Ag Tires – Min: 51.3 in. (1,302 mm)
Turning Radius w/ Brake: 8.0 ft (2.4 m)
Total Pump Flow: 11.7 gpm (44.4 lpm)
3-Point Hitch Standard Category (Optional Category): Cat. 1
Lift Capacity, 24″ aft of hitch, lb(kg): 1,631 lbs (740 kg)
Control Type: Position
Weight w/ Ag Tires w/ ROPS: 2,646 lbs (1,200 kg)

Additional information

Additional Features

Power Steering
Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

Deluxe Seat
A fully adjustable suspension seat allows the operator to ride in comfort no matter what the job. A retractable seat belt is standard on all KIOTI tractors to ensure operator safety.

Rear PTO
Rear PTO is standard and mid PTO is optional. You can select the rear or mid PTO separately or simultaneously.

Single Lever Joystick

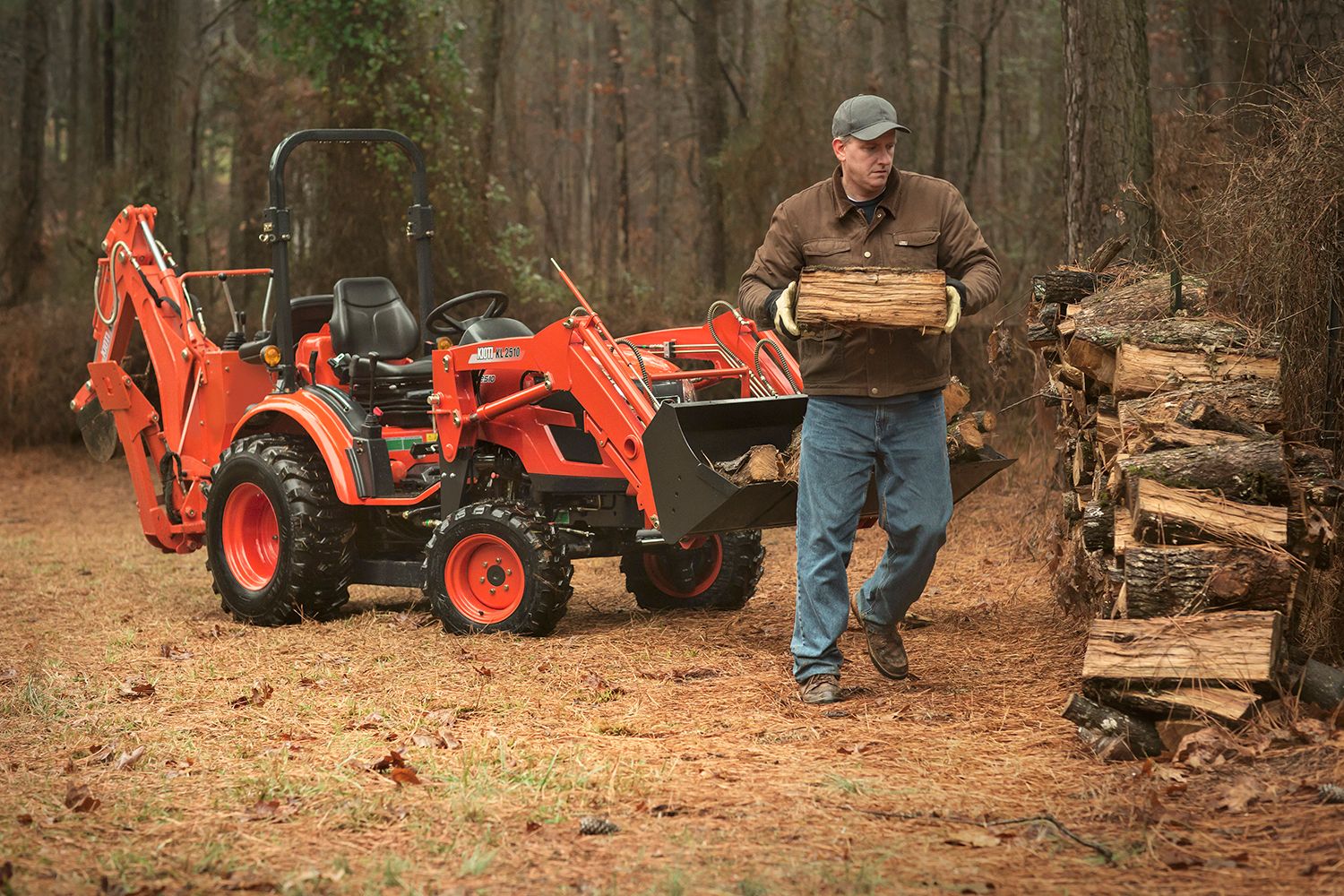

The operation of the front-end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free flotation over the ground surface.

Foldable ROPS
A fold-down roll bar allows you to move into tight areas quickly and easily.

Simple Maintenance
KIOTI Tractors are designed for easy maintenance. Liftable hoods and removable side panels allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.

Center Marker
The center marker on the hood assists with maintaining straight rows.

High Ground Clearance
The minimum ground clearance of 13.4 in. makes usage on rocky or uneven terrain simpler.

Illuminated Dashboard
The illuminated dashboard ensures great visibility while working in bright daylight or at night. The operator can check important instrumentation at a glance with an easy-to-see tachometer, hour meter, fuel temperature gauge, and battery charge lamp.

3-Point Control Lever
The 3-point control lever allows you to easily raise and lower the lift arms when attaching implements.

9×3 Manual Transmission
Manual transmission models feature 9F/3R speeds with synchronized 2nd and reverse gears making repetitive back and forward operation more efficient.
