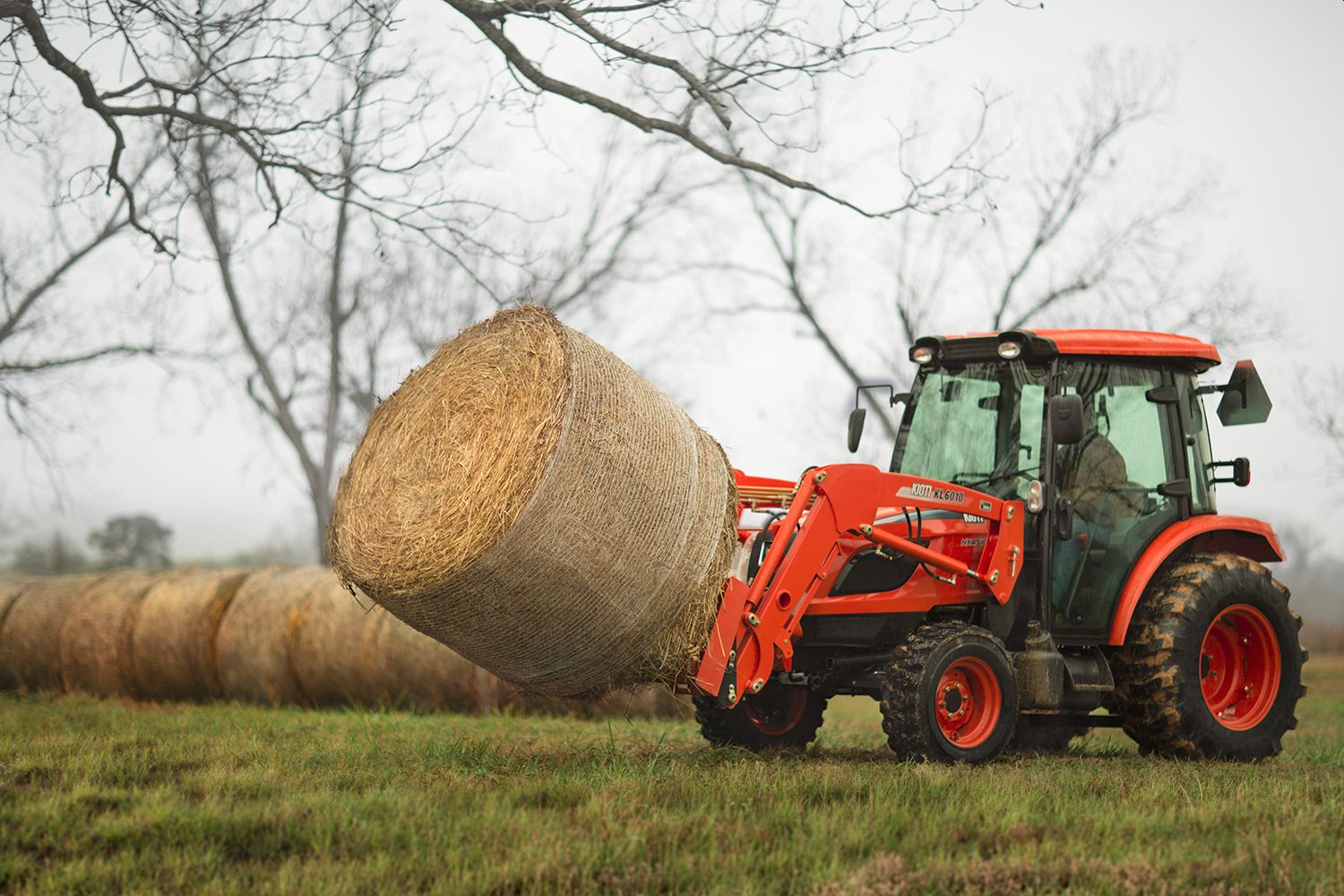

Kioti – NX4510H / NX4510CH

The modern and elegant hood design provides the operator with excellent visibility and enables quick and convenient access for daily maintenance. The Torque Compensation feature enables the engine to maintain a consistent and stable torque level under all conditions. the new Common Rail Diesel Engine (CRDI) improves fuel efficiency over 20% while reducing noise levels. With the Eco-friendly Tier 4 engine , the NX series offers the operator a quiet work environment with powerful performance.

Categories: , Tags: , ,

Engine Model: 3F183T
Weight with Ag Tires: 4,057 lbs. / 4,548 lbs.
Control Type: Position with Draft Control
Lift Capacity, 24 in. aft of hitch, lb (kg): 3,177 lbs.
Standard Category: Category # 1
Pump Capacity (Max. Flow Rate): 17.9 gpm
Pump: Gear
Turning Radius w/ Brake: 11.5 ft. / 9.8 ft.
Rear Tread Ag Tires – Max: 52.1 in.
Front Tread Ag Tires – Min: 55.2 in.
Ground Clearance: 13.7 in.
Wheelbase: 75.6 in.
Height from Top of ROPS Cab: 103.1 in. / 94.1 in.
Width: 65.6 in.
Length with 3-point hitch: 139.6 in.
Clutch: None
Brakes: Wet Multi Disc
Mid PTO Speeds: 2000 (optional)
Rear PTO Speeds (1st): 540
PTO Power: 33.9 hp
PTO Type Trans: Independent
Max. Travel Speed of Forward with Ag1 @ Engine rated speed: 16.52 mph (forward) & 16.52 mph (reverse)
Engine Gross Power: 45 hp
Rated Speed: 2600 rpm
No. of Cylinders: 3
Fuel Type: Diesel
Aspiration: Turbo Charged
Displacement: 111.4 cu. in.
Fuel Tank Capacity: 14.8 gal.
Transmission Type: Hydrostatic
Shuttle: N/A
Main Gear: Hydrostatic
No. of Travel Speeds – Forward / Reverse: 3 Ranges
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: 0 mph (forward) & 0 mph (reverse)
