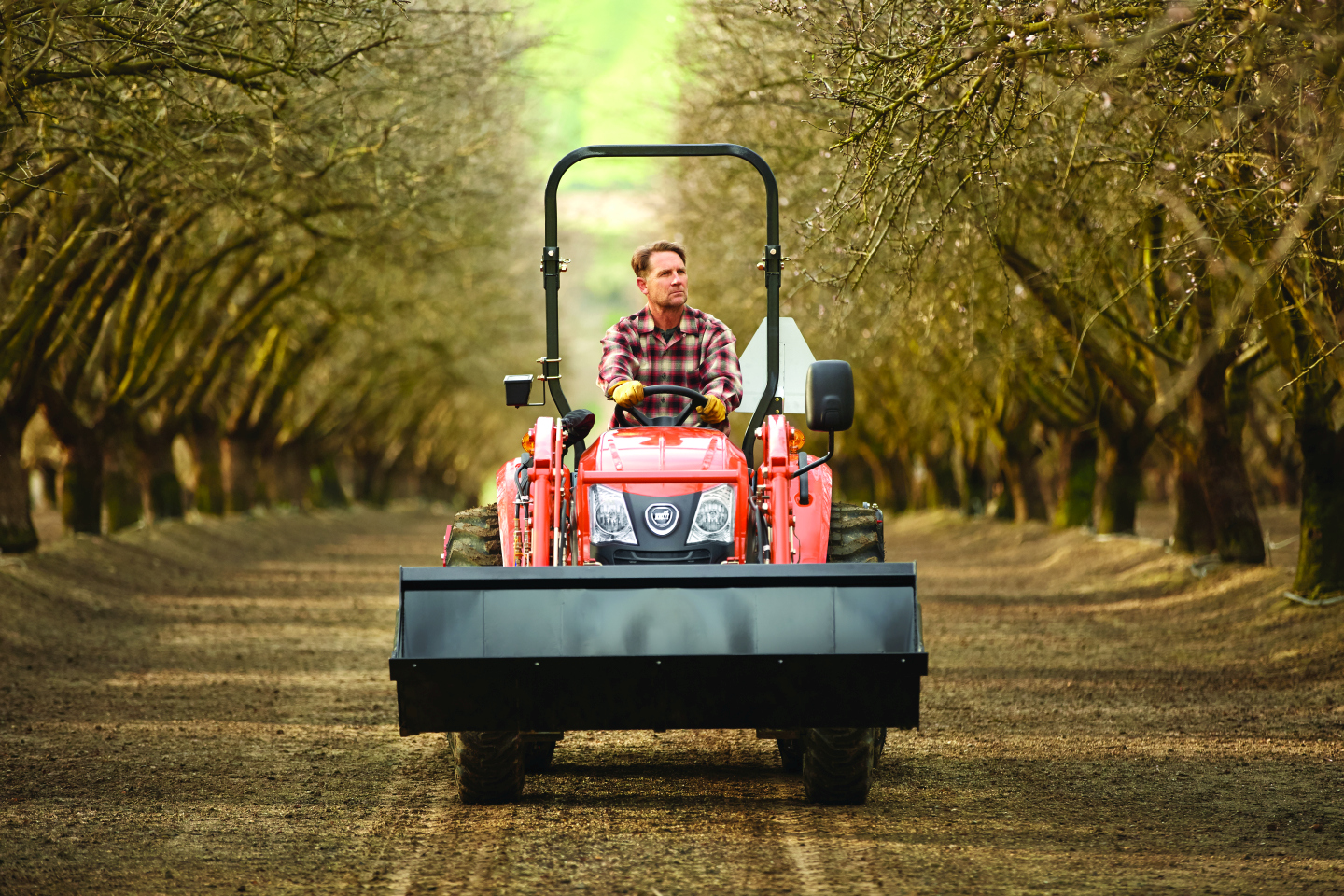

Kioti – KL4030

Fits the CK10 and CK10SE Series models. (CK2610/CK2610H/CK3510/CK3510H/CK4010/CK4010H/CK3510SE HC/CK4010SE HC) The KIOTI KL4030 front end loader is specifically designed for the model tractors in the CK10 and CK10SE Series, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.

Low profile design maximizes operator’s visibility.

Designed to be quickly and easily attached and detached.

A built-in parking stand on the front end loader provides quick and easy connection.

Mid-mount style frame for engine accessibility.

Bucket level indicator is standard.

Color complements KIOTI tractor.

Maximum Lift Height to Pivot Pin: 98.4 in. (2,500 mm)
Maximum Lift Height Under Level Bucket: 93 in. (2,360 mm)
Clearance With Bucket Dumped 45 Degrees: 79.1 in. (2,010 mm)
Reach At Maximum Lift Height: 27.2 in. (690 mm)
Maximum Dump Angle: 48°
Reach With Bucket on Ground: 62.2 in. (1,580 mm)
Maximum Rollback Angle: 28°
Digging Depth Below Grade: 5.3 in. (135 mm)
Overall Height in Carry Position: 49.6 in. (1,260 mm)
Bucket Depth (Inner Shell): 19.9 in. (505 mm)
Bucket Height: 20.7 in. (526 mm)
Bucket Length (Pivot Pin): 26.9 in. (682 mm)
Relief Valve Setting (Loader Control Valve): 2,560 psi
Rated Flow (Tractor System): 6.9 gpm (26.12 L/min)
Lift Capacity at 59.84 in. (1,520 mm) Pivot Pin Height: 1,835 lbs. (832 kg)
Breakout Force @ Pivot Pins: 3,464 lbs. (1,571 kg)
Approximate Weight (With Bucket): 60 in.: 959 lbs. (435 kg) / 66 in.: 981 lbs. (445 kg)
Bucket Capacity (Heaped): 60 in.: 9.39 cu. ft. / 66 in.: 10.10 cu. ft.
Bucket Rollback Force at Ground Line: 1,763.7 lbs. (800 kg)
Bucket Size(s) Available (QA): 60″ / 66″
