Kioti – Grading Scrapers

Grading Scrapers with and without Scarifiers

Model: GS2054
Product Description: Standard-Duty 54″ Grading Scraper, Without Scarifiers
Tractor Engine Range (hp): 15-30
Hitch Category: Ltd 1, & 1
Working Width (in.): 54
Overall Width (in.): 58
Overall Length (in.): 42
Box Height (in.): 14
Weight without Scarifiers (lb.): 349
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -.75 to +.75
Lower Hitch Design: Clevis

Model: GS2060
Product Description: Standard-Duty 60″ Grading Scraper, Without Scarifiers
Tractor Engine Range (hp): 20-45
Hitch Category: Category 1
Working Width (in.): 60
Overall Width (in.): 64
Overall Length (in.): 46
Box Height (in.): 16
Weight without Scarifiers (lb.): 493
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

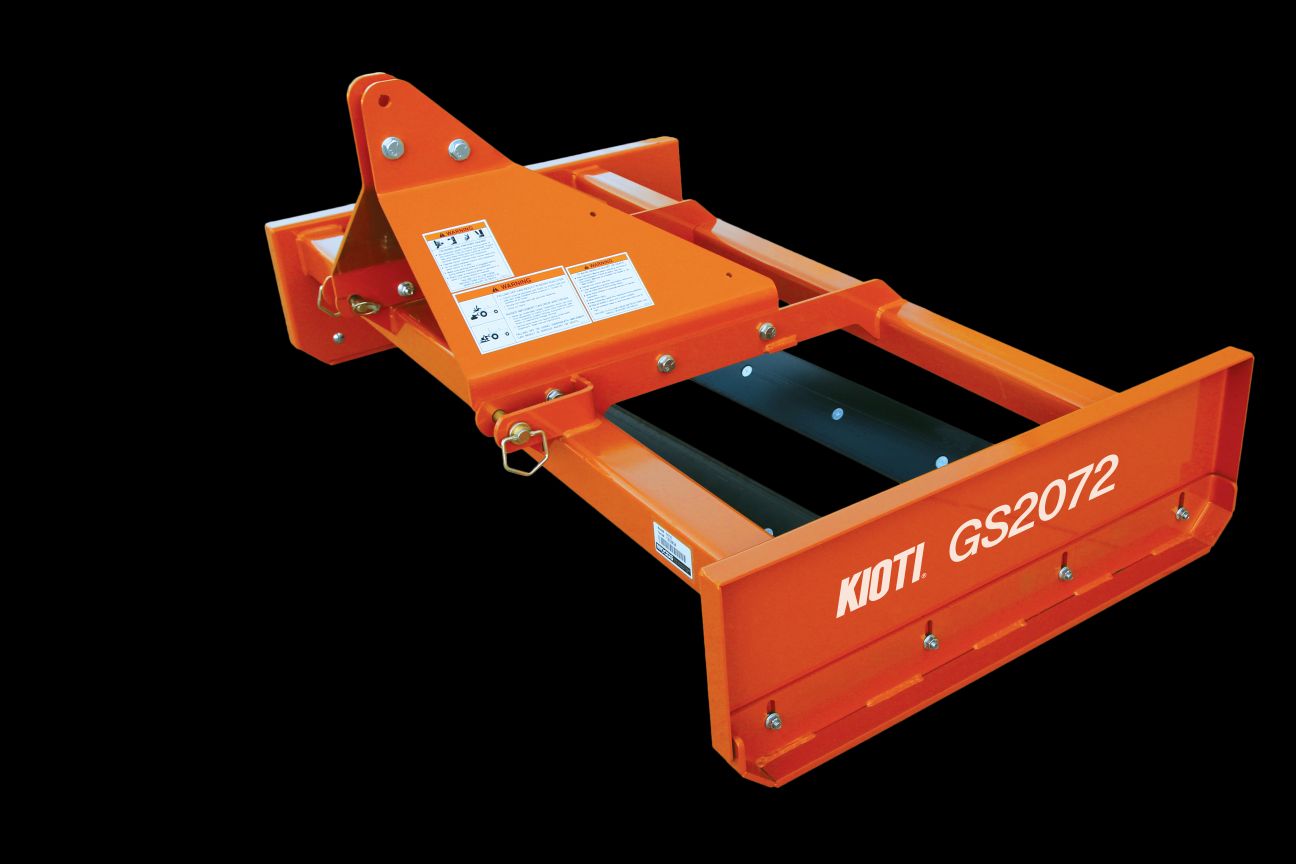

Model: GS2072
Product Description: Standard-Duty 72″ Grading Scraper, Without Scarifiers
Tractor Engine Range (hp): 20-45
Hitch Category: Category 1
Working Width (in.): 72
Overall Width (in.): 76
Overall Length (in.): 46
Box Height (in.): 16
Weight without Scarifiers (lb.): 580
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

Model: GS3084
Product Description: Medium-Duty 84″ Grading Scraper, Without Scarifiers
Tractor Engine Range (hp): 30-65
Hitch Category: Category 1 & 2
Working Width (in.): 84
Overall Width (in.): 88
Overall Length (in.): 46
Box Height (in.): 16
Weight without Scarifiers (lb.): 664
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

Model: GS3096
Product Description: Medium-Duty 96″ Grading Scraper, Without Scarifiers
Tractor Engine Range (hp): 30-65
Hitch Category: Category 1 & 2
Working Width (in.): 96
Overall Width (in.): 100
Overall Length (in.): 46
Box Height (in.): 16
Weight without Scarifiers (lb.): 712
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

Model: GS2054S
Product Description: Standard-Duty 54″ Grading Scraper, With Scarifiers
Tractor Engine Range (hp): 15-30
Hitch Category: Ltd 1, & 1
Working Width (in.): 54
Overall Width (in.): 58
Overall Length (in.): 42
Box Height (in.): 14
Weight with Scarifiers (lb.): 409
Number of Scarifiers: 4
Scarifier Adjustments: -4, -2.5, -1, +1
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -.75 to +.75
Lower Hitch Design: Clevis

Model: GS2060S
Product Description: Standard-Duty 60″ Grading Scraper, With Scarifiers
Tractor Engine Range (hp): 20-45
Hitch Category: Category 1
Working Width (in.): 60
Overall Width (in.): 64
Overall Length (in.): 46
Box Height (in.): 16
Weight with Scarifiers (lb.): 553
Number of Scarifiers: 4
Scarifier Adjustments: -2.5, -1, +.5,+2.5
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

Model: GS2072S
Product Description: Standard-Duty 72″ Grading Scraper, With Scarifiers
Tractor Engine Range (hp): 20-45
Hitch Category: Category 1
Working Width (in.): 72
Overall Width (in.): 76
Overall Length (in.): 46
Box Height (in.): 16
Weight with Scarifiers (lb.): 655
Number of Scarifiers: 5
Scarifier Adjustments: -2.5, -1, +.5,+2.5
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

Model: GS3084S
Product Description: Medium-Duty 84″ Grading Scraper, With Scarifiers
Tractor Engine Range (hp): 30-65
Hitch Category: Category 1 & 2
Working Width (in.): 84
Overall Width (in.): 88
Overall Length (in.): 46
Box Height (in.): 16
Weight with Scarifiers (lb.): 754
Number of Scarifiers: 6
Scarifier Adjustments: -2.5, -1, +.5,+2.5
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis

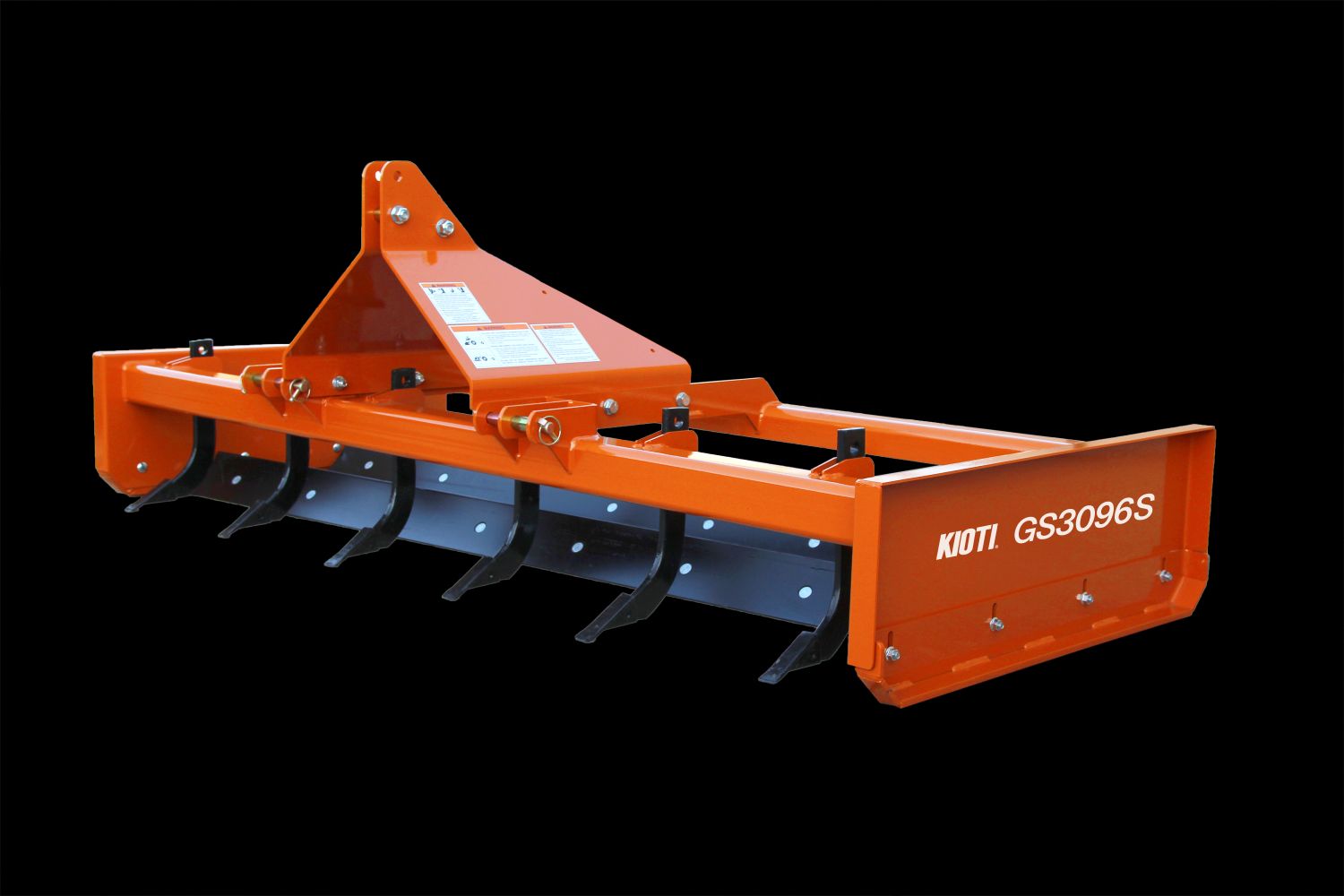

Model: GS3096S
Product Description: Medium-Duty 96″ Grading Scraper, With Scarifiers
Tractor Engine Range (hp): 30-65
Hitch Category: Category 1 & 2
Working Width (in.): 96
Overall Width (in.): 100
Overall Length (in.): 46
Box Height (in.): 16
Weight with Scarifiers (lb.): 802
Number of Scarifiers: 6
Scarifier Adjustments: -2.5, -1, +.5,+2.5
Reversible Cutting Edge (in.): .5 x 6
Skid Shoe Adjustment: -1.0 to +.5
Lower Hitch Design: Clevis
