Engine Model: 3F-THL4-U
Weight with Ag Tires with ROPS: 3,522.9 lbs. (1,598 kg)
Control Type: Position
Lift Capacity, 24 inch aft of hitch, lb(kg): 2,683 lbs. (1,217 kg)
3-Point Hitch Standard Category (Optional Category): Category 1
Total Pump Flow: 16.49 gpm (62.4 L/min)
Turning Radius with Brake: 8.63 ft. (2.6 m)
Rear Tread Ag Tires – Min: 49.2 in. (1,251 mm)
Front Tread Ag Tires – Min: 49.2 in. (1,252 mm)
Ground Clearance: 14.5 in. (368 mm)
Wheelbase: 71.3 in. (1,810 mm)
Height from Top of ROPS: 96.8 in. (2,458 mm)
Width: 62.8 in. (1,596 mm)
Length with 3-point hitch: 125.5 in. (3,189 mm)
Clutch: None
Brakes: Wet Disc Type
Mid PTO Speeds: 2,000 rpm (Optional)
Rear PTO Speeds(1st): 540 rpm
PTO Power: 29.1 hp (21.7 kW)
PTO Type Trans: Independent
Max. Travel Speed of Forward with Ag1 @ Engine rated speed: 18.5 mph (29.7 km/h)
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: 0 mph (0 km/h)
No. of Travel Speed Forward / Reverse: 3 Range
Transmission Type: Hydrostatic
Fuel Tank Capacity: 12.7 gal. (48 L)
Displacement: 111.4 cu. in. (1,826 cc)
Fuel Type: Diesel
No. of Cylinder: 3
Rated Speed: 2,600 rpm
Engine Gross Power: 39.6 hp (29.5 kW)

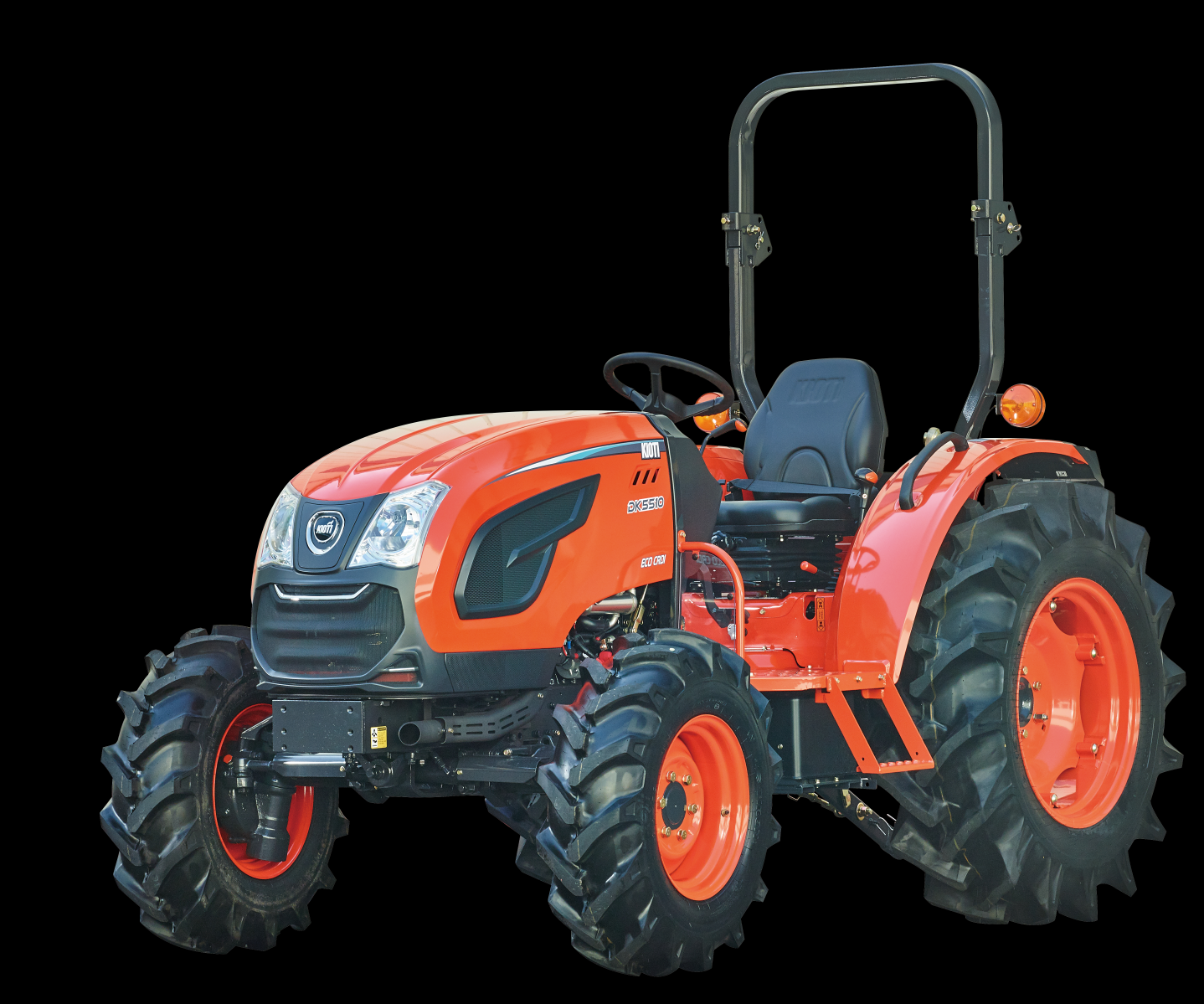

Kioti – DK4220SE HST
Diesel engine with Daedong ECO Technology
The 39.6 hp (29.5 kW) Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this Eco-friendly Tier 4 engine, the DK10SE Series offers the operator a quiet work environment with powerful performance.
Power Steering
The standard power steering minimizes the effort required to make tight, repetitive turns.
