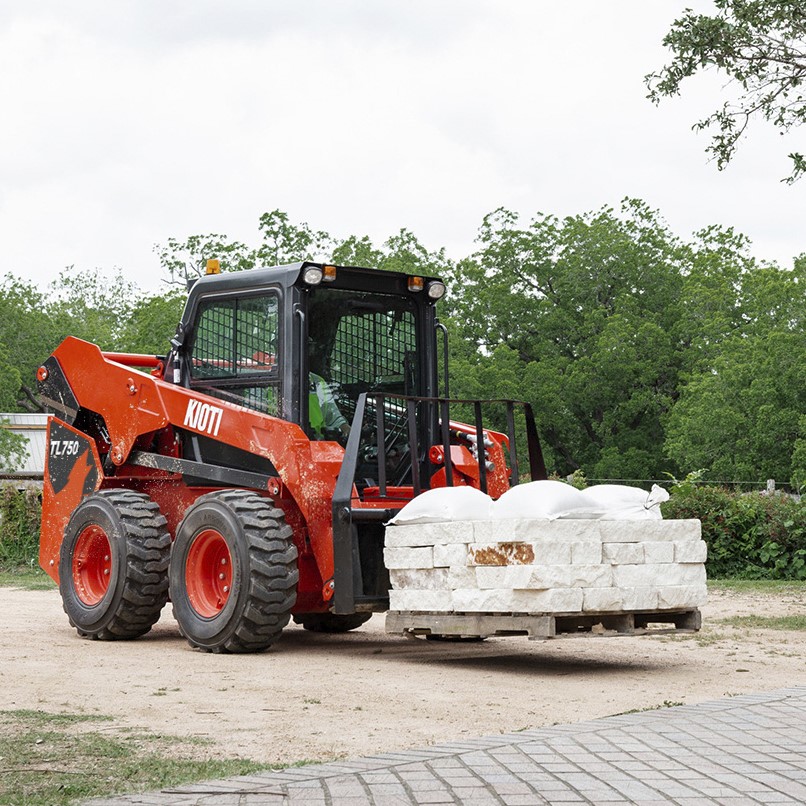

Kioti SL Series Skid Loader

KIOTI compact skid steers are built for professionals who need a machine to be as tough, dependable and durable as they are and need a machine to match that resolve. KIOTI’s compact skid steers are tailored to meet those ambitions. The SL750 keeps comfort top of mind and ensures the toughest days don’t have to feel that way. As operators continually push the limits of what compact equipment can accomplish, tackling bigger and more ambitious jobs, they expect their equipment to pave the way. KIOTI compact skid steers are designed to lift, push, and power their way through those rigorous demands, helping them accomplish more.

Categories: , ,

Standard Features

Exceptional Lift Heights (~10.5 ft)

KIOTI skid steers are among top of class for lift heights, bringing ease to tasks such as dumping into trucks and high sided hoppers.

Proven KIOTI Engine

KIOTI compact skid steers utilize a powerful 74 horsepower KIOTI engine. This engine, proven over the years in the popular RX-Series tractors, offers excellent performance and proven reliability.

Standard Two-Speed Travel

Increased productivity with standard two-speed travel on the KIOTI SL750, allows operators to quickly transition between low-speed precision and power and high-speed transport.

Pilot Hydraulic Joystick Controls

The hydraulic pilot joystick controls on KIOTI compact skid steers offer premium touch and feel, making the machine feel like an extension of the operator. Fingertip controls also give the operator an easy way to control their attachment functions right from the joystick for smooth and effortless operation.

Wide, Comfortable Cab

The KIOTI SL750 features a wide and comfortable cab, with a sliding overhead door. With a high back suspension seat and optional enclosed cab with HVAC, operators will find added comfort and reduced fatigue during long days on the job.

Sliding Overhead Door

KIOTI’s sliding front door allows for quick entry and exit, regardless of the bucket or attachment positioning. There is also no need to remove the door as it can lock into an open position with ease and unlock when you prefer to enjoy the comforts of the HVAC cab.

Standard LED Work Lights

The KIOTI SL750 comes standard with LED front and rear working lights making it easier for operators to further enhance visibility when operating in low-light conditions.

Specifications:

Engine

Manufacturer KIOTI
Engine Gross Power 73.6 hp (54.9 kW)
Rated Revolution 2,400 rpm
Cylinders 4
Fuel Tank Capacity 26.4 us gal (100 L)

Hydraulic System

Loader Hydraulic Pressure 3,335 psi (230 bar)
Hydraulic Flow Range 21.9 gpm (82.9 lpm)

Performance

Tipping Load 5,380 lb (2,440 kg)
Rated Operating Capacity 2,689 lbs (1,220 kg)
Operating Weight 8,362 lbs (3,793 kg)
Breakout Force, Tilt (Bucket) 5,512 lbs (2,500 kg)
Breakout Force, Lift 5,016 lbs (2,275 kg)
Lift Arm Path Vertical
Control ISO Pilot

Dimensions

Lift Height to Hinge Pin at Max Lift 126.6 in (3,215 mm)
Length w/Bucket 144.7 in (3,675 mm)
Length w/o Bucket 116.5 in (2,960 mm)
Width Over Tires 71.7 in (1,820 mm)
Height to Top of Cab 81.2 in (2,063 mm)
Wheelbase 47.2 in (1,200 mm)
Ground Clearance 7.7 in (195 mm)
Width w/Bucket 74.4 in (1,890 mm)
Max Overall Height 160.2 in (4,068 mm)
