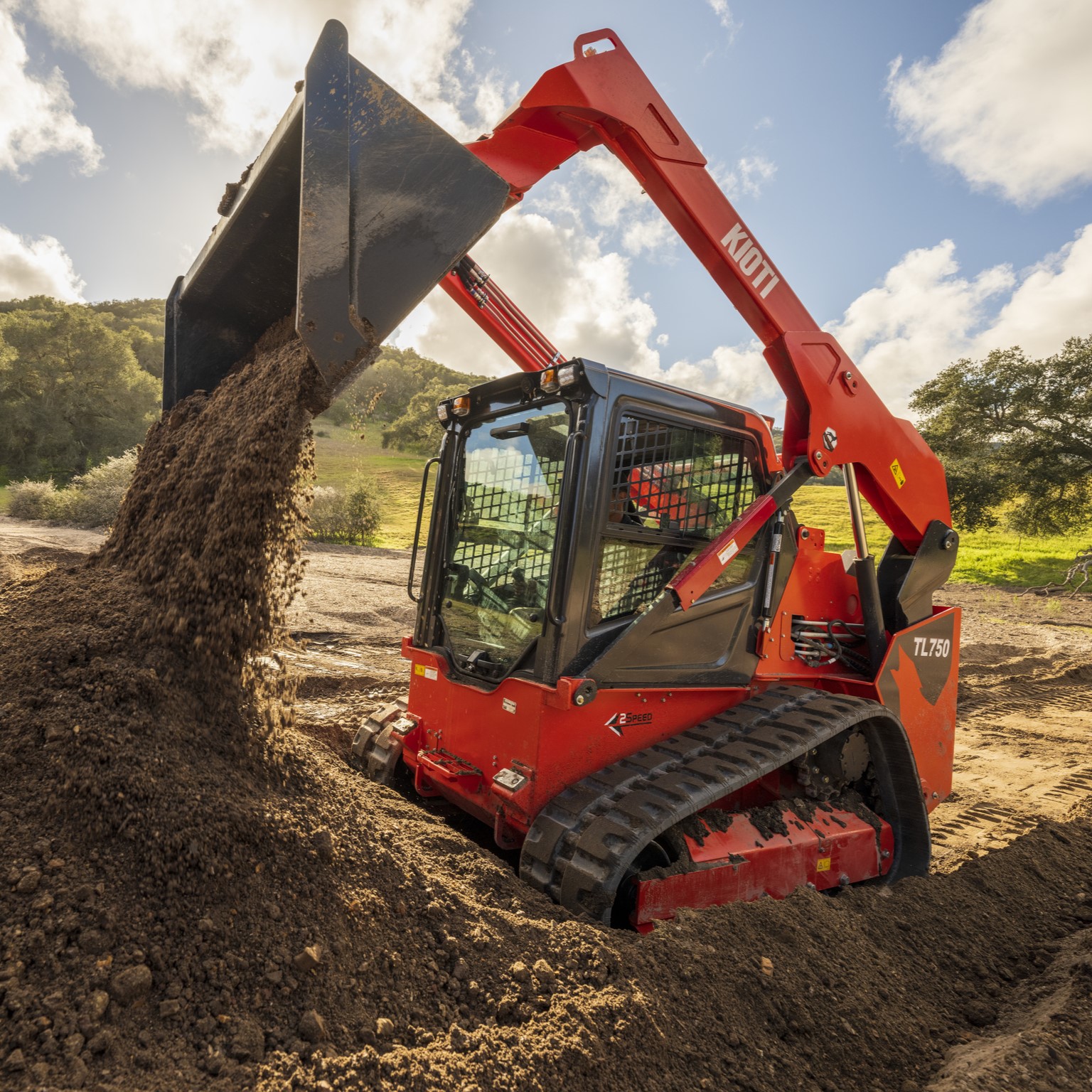

Kioti TL Series Track Loader

KIOTI track loaders are built for professionals who need a machine to be as tough, dependable and durable as they are and need a machine to match that resolve. KIOTI’s new compact track loaders are tailored to meet those ambitions. The TL750 was designed with comfort in mind to make sure the toughest days don’t have to feel that way. As operators continually push the limits of what compact equipment can accomplish, tackling bigger and more ambitious jobs, they expect their equipment to pave the way. KIOTI compact track loaders are designed to lift, push, and power their way through those rigorous demands, helping them accomplish more.

Categories: ,

Standard Feautures:

Exceptional Lift Heights (~10.5 ft)

KIOTI track loaders are among top of class for lift heights, bringing ease to tasks such as dumping into trucks and high sided hoppers.

Proven KIOTI Diesel Engine

KIOTI compact track loaders utilize a powerful 74 horsepower KIOTI engine. This engine, proven over the years in the popular RX-Series tractors, offers excellent performance and proven reliability.

Pilot Hydraulic Joystick Controls

The hydraulic pilot joystick controls on KIOTI compact track loaders offer premium touch and feel, making the machine feel like an extension of the operator. Fingertip controls also give the operator an easy way to control their attachment functions right from the joystick for smooth and effortless operation.

Wide, Comfortable Cab

The KIOTI TL750 features a wide and comfortable cab, with a sliding overhead door, making it easy for entry and exit. With a high back suspension seat and optional enclosed cab with HVAC, operators will find added comfort and reduced fatigue during long days on the job.

Sliding Overhead Door

KIOTI’s sliding front door allows for quick entry and exit, regardless of the bucket or attachment positioning. There is also no need to remove the door as it can lock into an open position with ease and unlock when you prefer to enjoy the comforts of the HVAC cab.

Standard Two-Speed Travel

Increased productivity with standard two-speed travel on the KIOTI TL750 allows operators to quickly transition between low-speed precision and power and high-speed transport.

Standard LED Work Lights

  • The KIOTI TL750 comes standard with LED front and rear working lights making it easier for operators to further enhance visibility when operating in low-light conditions.
  • Specifications:
Manufacturer KIOTI
Engine Gross Power 73.6 hp (54.9 kW)
Rated Revolution 2,400 rpm
Cylinders 4
Fuel Tank Capacity 26.4 us gal (100 L)

Hydraulic System

Loader Hydraulic Pressure 3,335 psi (230 bar)
Hydraulic Flow Range 21.9 gpm (82.9 lpm)

Performance

Tipping Load 6,570 lbs (2,980 kg)
Rated Operating Capacity 2,300 lbs (1,043 kg)
Operating Weight 9,689 lbs (4,395 kg)
Breakout Force, Tilt (Bucket) 5,512 lbs (2,500 kg)
Breakout Force, Lift 5,016 lbs (2,275 kg)
Lift Arm Path Vertical
Control ISO Pilot
Track Tension Type Grease

Dimensions

Lift Height to Hinge Pin at Max Lift 130.3 in (3,310 mm)
Length w/Bucket 144.7 in (3,675 mm)
Length w/o Bucket 116.5 in (2,960 mm)
Width w/Track 70.9 in (1,800 mm)
Height to Top of Cab 81.9 in (2,080 mm)
Wheelbase 47.2 in (1,200 mm)
Track Width 15.7 in (400 mm)
Length of Track on Ground 56.5 in (1,435 mm)
Width w/Bucket 74.4 in (1,890 mm)
Max Overall Height 163.8 in (4,160 mm)
Turning Radius 87.5 in (2,223 mm)
