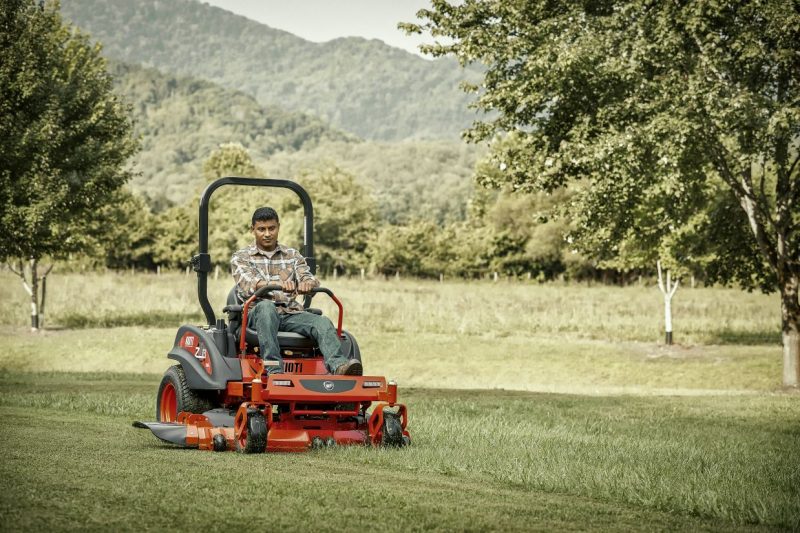

Kioti – ZXR48 SE, ZXR54 SE, ZXR60 SE

The ZXR SE Series was designed for residential applications with property owners and hobby farmers in mind. With a Kohler Confidant™ engine combined with a Hydro-Gear® ZT-3200 transmission, the ZXR SE delivers reliable and hardworking performance. Owners can choose from a 48, 54 or 60 in mower deck, each with a fabricated, reinforced 10-gauge steel deck and standard notch blades that cut through the toughest turf.

Model: ZXR48 SE

Engine

Type: Kohler Confidant
Engine Gross hp (kW): 21 (15.65)
Displacement cu. in. (cc): 44.24 (725)
Choke: Manual
Fuel Tank Capacity gal. (l ): 7.5 (28.39)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)

Drive Train

Model: Hydro-Gear ZT-3200
Displacement (Pump/Motor) cc: 10/16

PTO Type

Clutch ft./lb.: 125

Electrical

Charging System amp: 15

Tire Size

Front: 13 x 5-6
Rear: 23 x 9.5-12

Traveling Speeds

Forward mph (km/h): 9 (14.48)
Parking Brake: Internal Integrated in Axle

Dimensions

Overall Length in. (mm): 80.7 (2,049.78)
Overall Width in. (mm): 60.7 (1,541.78)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 48.5 (1,231.9)
Width (Tire to Tire) in. (mm): 50.3 (1,277.62)
Approximate Curb Weight lb. (kg): 970 (439.98)

Mower Deck

Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 5 (4 front, 1 rear)
Cutting Width of Mower in. (mm): 48 (1,219.2)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type

Seat

Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard

Standard/Optional

Foldable ROPS: Standard
Head Light: Standard
Power Socket: Standard

Model: ZXR54 SE

Engine

Type: Kohler Confidant
Engine Gross hp (kW): 23 (17.15)
Displacement cu. in. (cc): 45.58 (747)
Choke: Auto
Fuel Tank Capacity gal. (l ): 7.5 (28.39)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)

Drive Train

Model: Hydro-Gear ZT-3200
Displacement (Pump/Motor) cc: 10/16

PTO Type

Clutch ft./lb.: 125

Electrical

Charging System amp: 15

Tire Size

Front: 13 x 5-6
Rear: 23 x 9.5-10

Traveling Speeds

Forward mph (km/h): 9 (14.48)
Parking Brake: Internal Integrated in Axle

Dimensions

Overall Length in. (mm): 80.7 (2,049.78)
Overall Width in. (mm): 67.3 (1,709.42)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 48.5 (1,231.9)
Width (Tire to Tire) in. (mm): 50.3 (1,277.62)
Approximate Curb Weight lb. (kg): 988 (448.14)

Mower Deck

Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 6 (4 front, 2 rear)
Cutting Width of Mower in. (mm): 54 (1,371.6)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type

Seat

Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard

Standard/Optional

Foldable ROPS: Standard
Head Light: Standard
Power Socket: Standard

Model: ZXR60 SE

Engine

Type: Kohler Confidant
Engine Gross hp (kW): 25 (18.64)
Displacement cu. in. (cc): 45.58 (747)
Choke: Auto
Fuel Tank Capacity gal. (l ): 7.5 (28.39)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)

Drive Train

Model: Hydro-Gear ZT-3200
Displacement (Pump/Motor) cc: 10/16

PTO Type

Clutch ft./lb.: 125

Electrical

Charging System amp: 15

Tire Size

Front: 13 x 5-6
Rear: 23 x 9.5-12

Traveling Speeds

Forward mph (km/h): 9 (14.48)
Parking Brake: Internal Integrated in Axle

Dimensions

Overall Length in. (mm): 81.7 (2,075.18)
Overall Width in. (mm): 72.6 (1,844.04)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 49.5 (1,257.3)
Width (Tire to Tire) in. (mm): 50.3 (1,277.62)
Approximate Curb Weight lb. (kg): 999 (453.13)

Mower Deck

Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 8 (4 front, 4 rear)
Cutting Width of Mower in. (mm): 60 (1,524)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type

Seat

Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard

Standard/Optional

Foldable ROPS: Standard
Head Light: Standard
Power Socket: Standard

Additional information

Additional Features

Heavy Duty Chassis Robust frame with strong tubular steel and welded ROPS to protect operators.

Rear Guard Steel rear guard to protect major components with convenient integrated tie-downs.

LED Headlights LED headlights are standard on ZXR SE models and optional on ZXR models to improve visibility in low light conditions.

Operator Platform with Access Panel The wide platform designed for operator comfort and convenience allows for easy service and cleaning.

Dial-Type Adjustable Deck System Ergonomically designed and simple to use adjustable deck system allows for precise cutting heights.

Digital Control Panel and Keyless Start Easy to use push button keyless start and diagnostics panel.

Engines The KIOTI ZXR Series is equipped with Briggs and Stratton Professional Series™ gasoline engines ranging from 22 to 27 HP. The KIOTI ZXR SE Series is equipped with Kohler Confidant™ engines raning from 21 to 25 HP.

Adjustable Suspension Seat 1.5 inch suspension seat is standard on ZXR SE models. The ZXR models can be outfitted with a 1 inch suspension kit.

Heavy Gauge Fabricated Deck 10 Guage fabricated deck in 48, 54 and 60 inch sizes with reinforced 7 gauge edge for long lasting durability.
