Maximum Lift Height to pivot pin: 108.3 in. (2,750 mm)
Clearance with Attachment Level: 103.9 in. (2,639 mm)
Clearance with Bucket Dumped: 82.7 in. (2,101 mm)
Reach at Maximum Height: 19.7 in. (500 mm)
Maximum Dump Angle: 66˚
Reach with Attachment on Ground: 70.9 in. (1,801 mm)
Maximum Rollback Angle: 31˚
Digging Depth Below Grade: 8.5 in. (216 mm)
Overall Height in Carry Position: 49 in. (1,245 mm)
Lift Capacity to Full Height at Pivot Pins: 2,761 lbs. (1,252 kg)
Breakout Force at Ground Line: 3,727 lbs. (1,691 kg)
Breakout Force at Pivot Pin: 2,990 lbs. @ 19.7 in. Pivot-pin forward
Relief Valve Setting (Loader Control Valve): 2,556 psi
Rated Flow (Tractor system): 10 gpm (37.9 L/min)
Bucket Size: 72 in. (1,829 mm)
Depth of Attachment (to back of inner shell): 19.9 in. (505 mm)
Height of Attachment: 22.8 in. (579 mm)
Depth of Attachment (to pivot pin): 25.9 in. (658 mm)
Heaped Bucket Capacity: 13.06 ft3
Raise Boom (seconds): 7.8 (1,500 rpm) / 6.1 (2,000 rpm) / 4.5 (2,600 rpm)
Lower Boom (seconds): 4.8 (1,500 rpm) / 3.8 (2,000 rpm) / 2.8 (2,600 rpm)
Dump Bucket (seconds): 7.6 (1,500 rpm) / 5.5 (2,000 rpm) / 4.1 (2,600 rpm)
Retract Bucket (seconds): 5.4 (1,500 rpm) / 4.2 (2,000 rpm) / 3.0 (2,600 rpm)

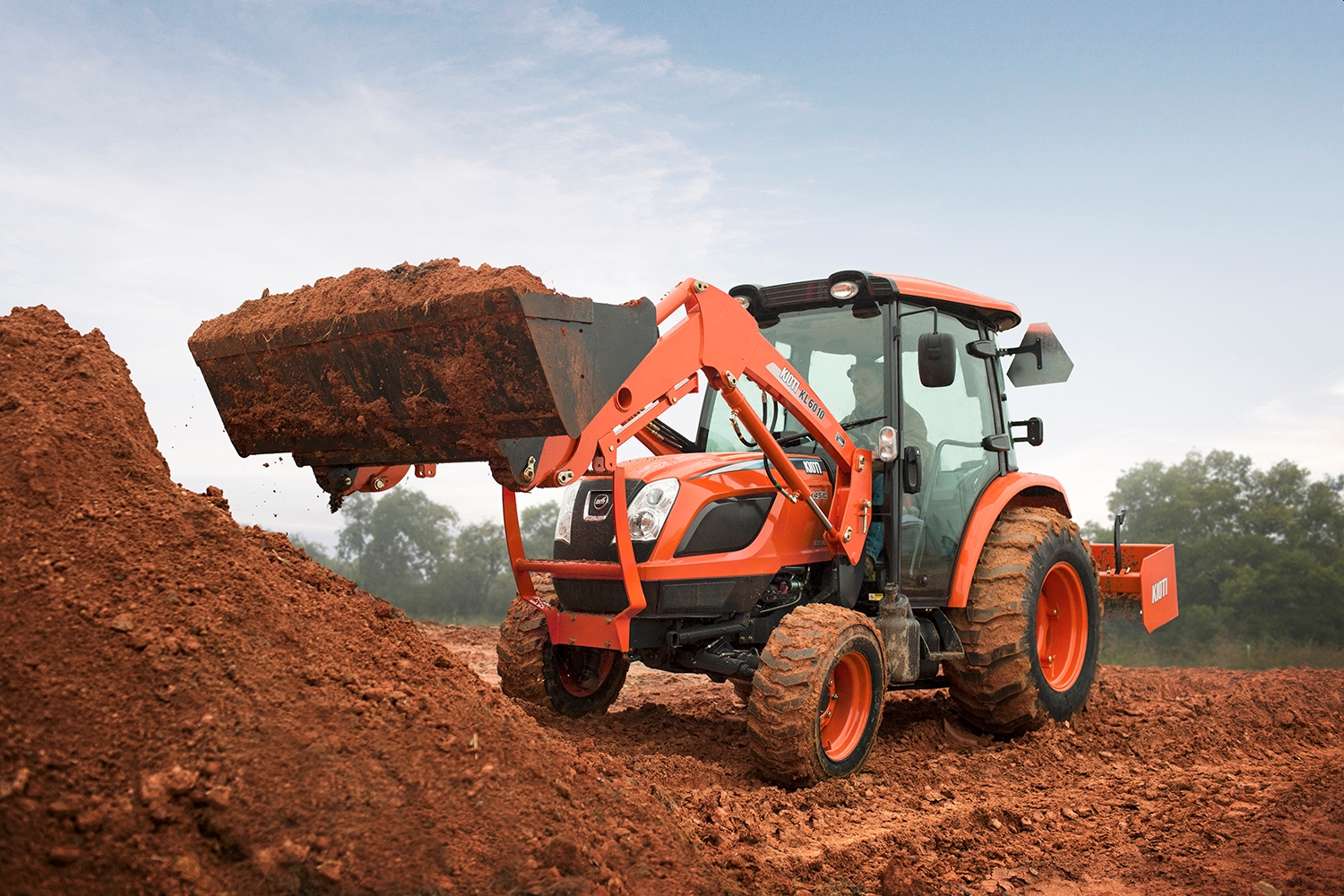

Kioti – KL6010
Fits the NX4510/5010/5510/6010 models.
The KIOTI KL6010 front end loader is specifically designed for the NX Series tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator.
Low profile design maximizes operator’s visibility.
Designed to be quickly and easily attached and detached.
A built-in parking stand on the front end loader provides quick and easy connection.
Mid-mount style frame for engine accessibility.
Bucket level indicator is standard.
Color complements KIOTI tractor.
