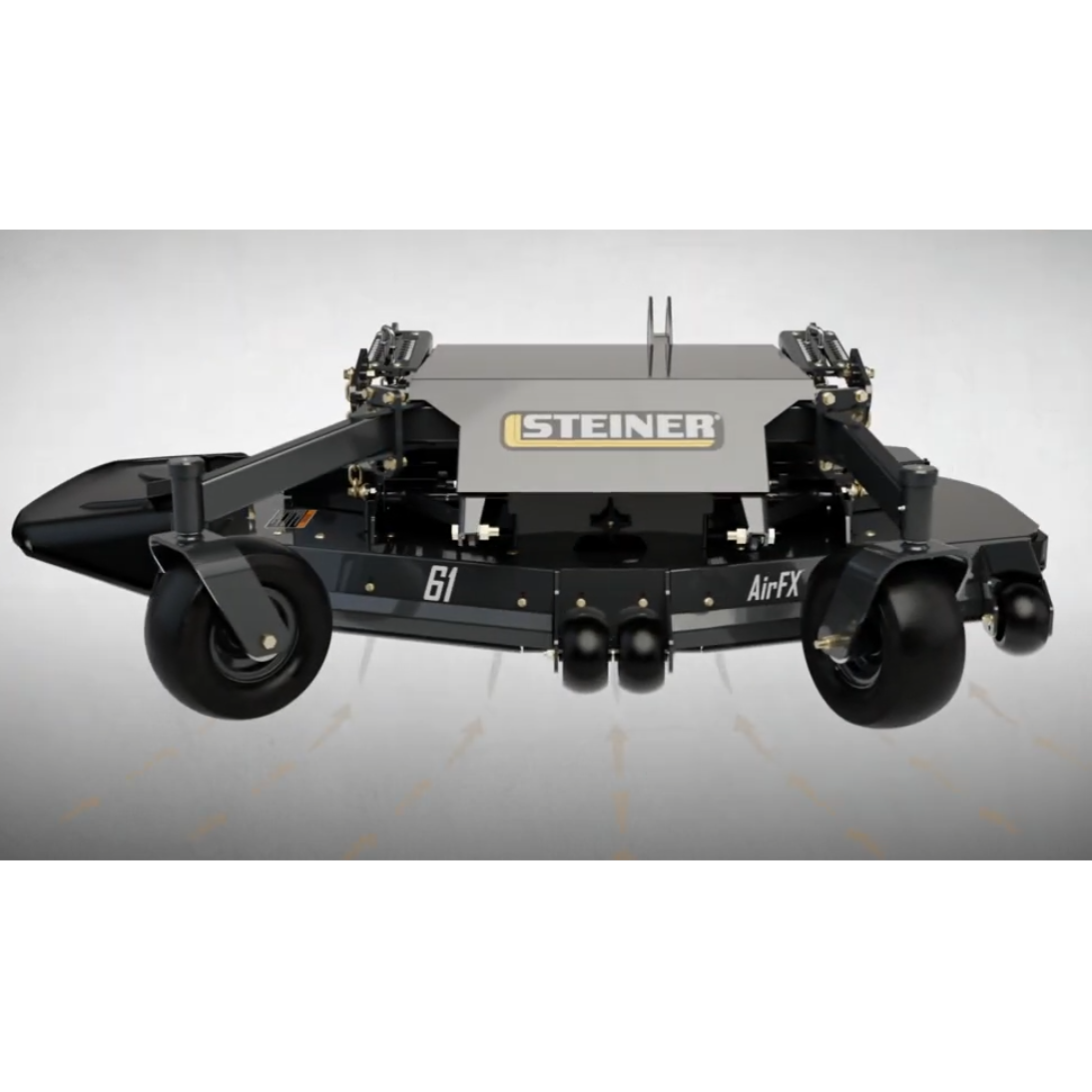

Delivering the durability and performance you’ve come to expect from STEINER®, the AirFX™ mower deck features an adjustable front lip to tackle all turf types and conditions. With a deep-deck, bullnose design and patented Air-Gap™ baffle system, the AirFX™ mower deck creates a vacuum that lifts the grass for a superior quality of cut. The extra large discharge allows for ideal airflow and a cleaner deck. A hydraulic lift provides the ability to raise and lower the deck from the operator’s seat for height of cut adjustments and transport. In addition, an 80-degree hydraulic flip up allows for improved cleaning and maintenance.
Model: 61″AirFX™
Overall Width: 76.5″ (194.3 cm) w/discharge
Cutting Width: 61″ (155.5 cm)
Cutting Height: 1″ to 5″
Spindle Drive: Single “V” Belt
Spindles: Deep groove double sealed
Blades: 3 Blades, 21″
Discharge: Side
Caster Wheels: 11″ x 6″ Semi Pneumatic
Weight: 540 lbs
Hydraulic Flip-up: Standard
Drive: Shaft to PTO Belt
