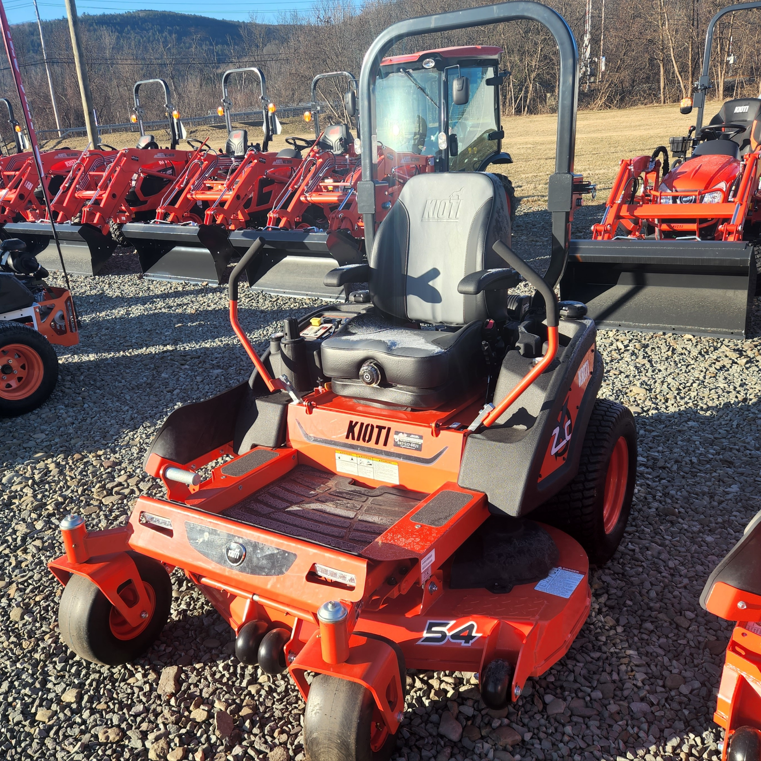

Model: ZXC54 LT
Engine
Type: Kawasaki FT730V
Engine Gross hp (kW): 24.0 (17.9)
Displacement cu. in. (cc): 44.3 (726)
Choke: Manual Lever
Fuel Tank Capacity gal. (l ): 12.5 (47.31)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)
Drive Train
Model: Hydro-Gear ZT-3400
Displacement (Pump/Motor) cc: 12/16
PTO Type
Clutch ft./lb.: 200
Electrical
Charging System amp: 15
Tire Size
Front: 13 x 6.5-6
Rear: 23 x 10.5-12
Traveling Speeds
Forward mph (km/h): 10 (16.1)
Parking Brake: Internal Integrated in Axle
Dimensions
Overall Length in. (mm): 80.7 (2,049.78)
Overall Width in. (mm): 67.5 (1,709.42)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 48.5 (1,231.9)
Width (Tire to Tire) in. (mm): 51.3 (1,303.02)
Approximate Curb Weight lb. (kg): 939 (425.92)
Mower Deck
Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 6 (4 front, 2 rear)
Cutting Width of Mower in. (mm): 54 (1,371.6)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type
Seat
Suspension: Standard (3 Inch Suspension with High Back)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard
Standard/Optional
Foldable ROPS: Standard
Head Light: Standard
Power Socket: Standard
Kioti promotions can be combined with this sale. Destination fee additional and sales tax additional as applicable.
The ZXC LT Series was designed for commercial applications with landscaping professionals in mind. With a Kawasaki FT730V engine combined with a Hydro-Gear® transmission, the ZXC LT delivers reliable performance. Owners can choose from a 48, 54 or 60 in. mower deck, each with a fabricated 10-gauge steel deck with 7-gauge reinforcement around the edge for long lasting durability.
