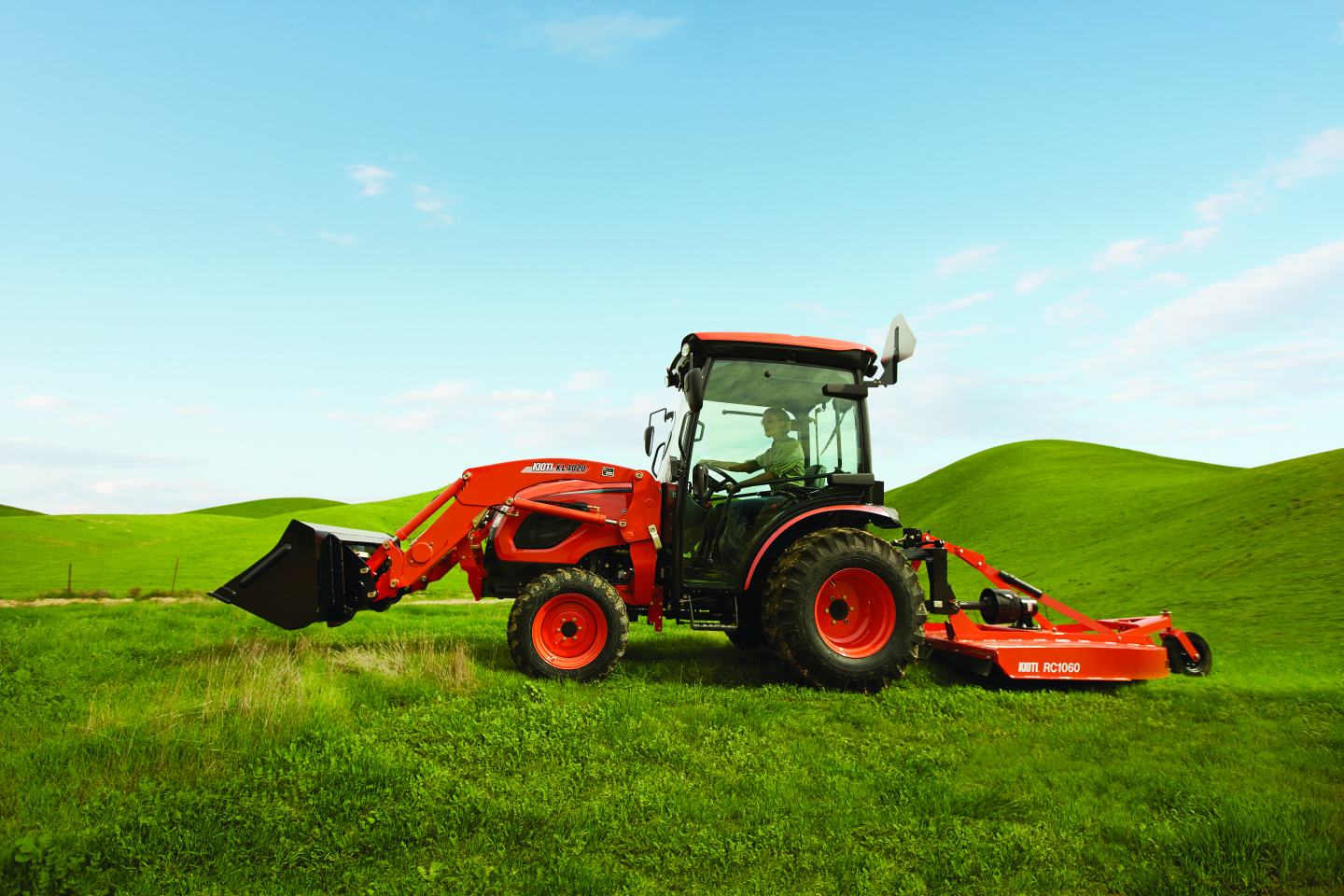

Kioti – KL4020

Fits the CK10SE Series Models. (CK3510SE HC/CK4010SE HC) The KIOTI KL4020 front end loader is specifically designed for the CK10SE Series tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.

Low profile design maximizes operator’s visibility.

Designed to be quickly and easily attached and detached.

A built-in parking stand on the front end loader provides quick and easy connection.

Mid-mount style frame for engine accessibility.

Bucket level indicator is standard.

Color complements KIOTI tractor.

Maximum Lift Height to pivot pin: 98.4 in. (2,500 mm)
Clearance with Attachment Level: 88 in. (2,234 mm)
Clearance with Attachment Dumped (45º): 74 in. (1,864 mm)
Reach at Maximum Height: 11.3 in. (286 mm)
Maximum Dump Angle: 48º
Reach with Attachment on Ground: 63.4 in. (1,610 mm)
Maximum Rollback Angle: 28.5º
Digging Depth Below Grade: 4.8 in. (122 mm)
Overall Height in Carry Position: 53.1 in. (1,349 mm)
Lift Capacity to Full Height at Pivot Pins: 1,930 lbs. (875 kg)
Breakout Force at Pivot Pins: 3,473 lbs. (1,575 kg)
Relief Valve Setting (Loader Control Valve): 2,567 psi
Rated Flow (Tractor Hydraulic System): 7.1 gpm
Bucket Size: 60 in. / 66 in.
Weight (with Bucket): 937-950 lbs. (425-431 kg)
Depth of Attachment (to back of inner shell): 19.1 in. (485 mm)
Height of Attachment: 19.7 in. (501 mm)
Length of Attachment (to pivot pin): 24.3 in. (616 mm)
Raise Boom (2,600 rpm): 5.3 seconds
Lower Boom (2,600 rpm): 3.7 seconds
Dump Bucket (2,600 rpm): 3.7 seconds
Retract Bucket (2,600 rpm): 2.7 seconds
