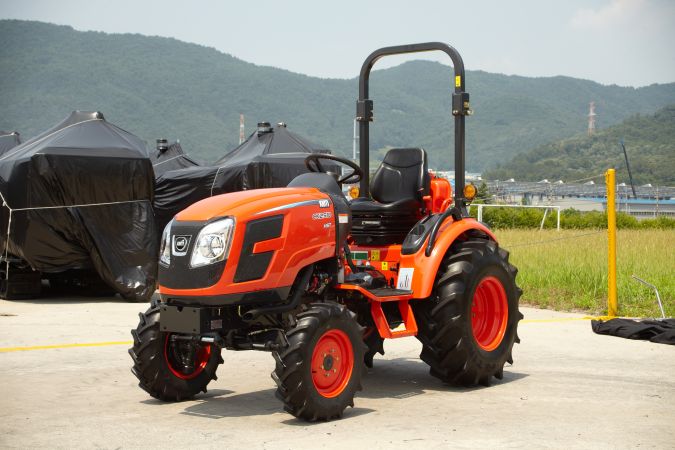

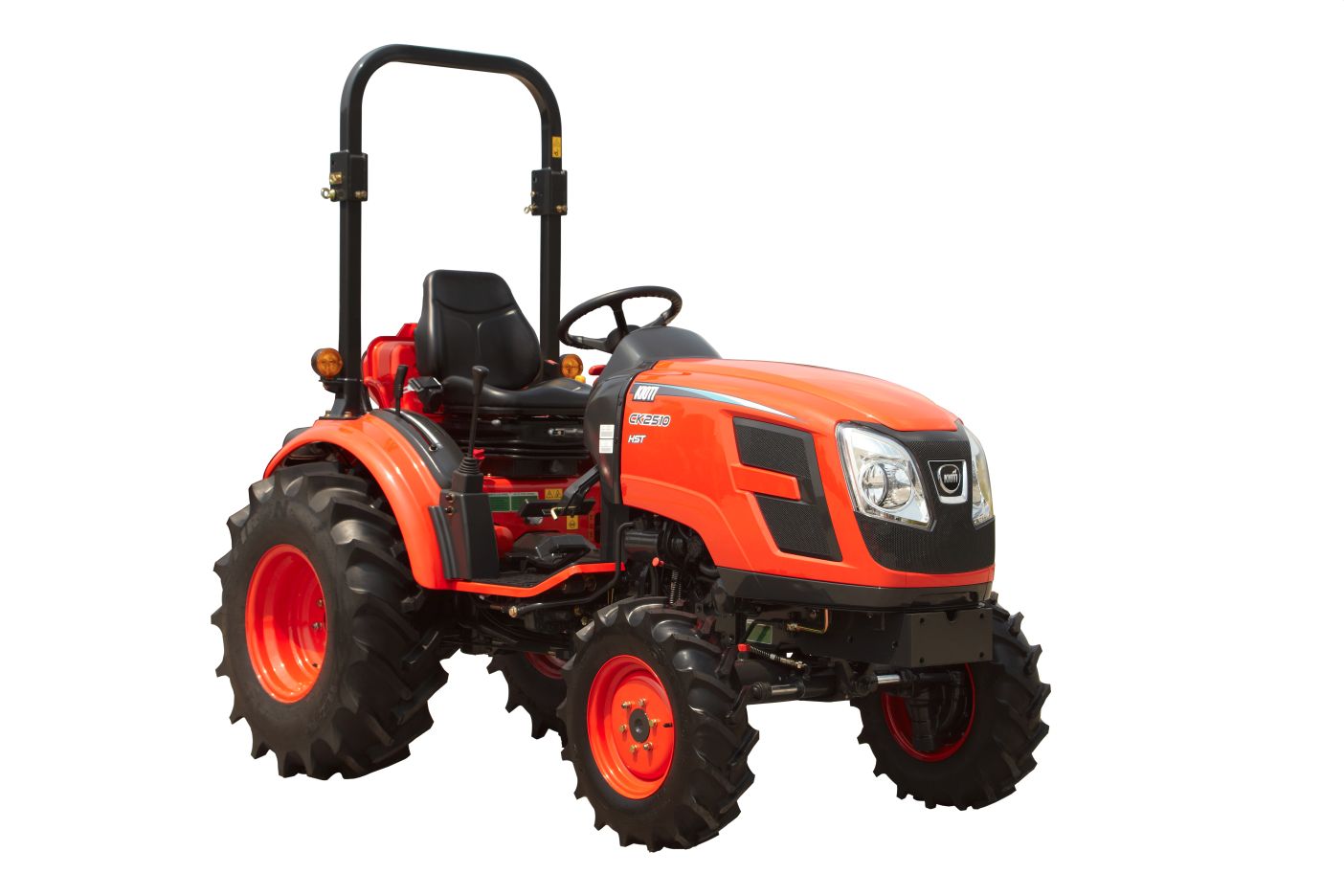

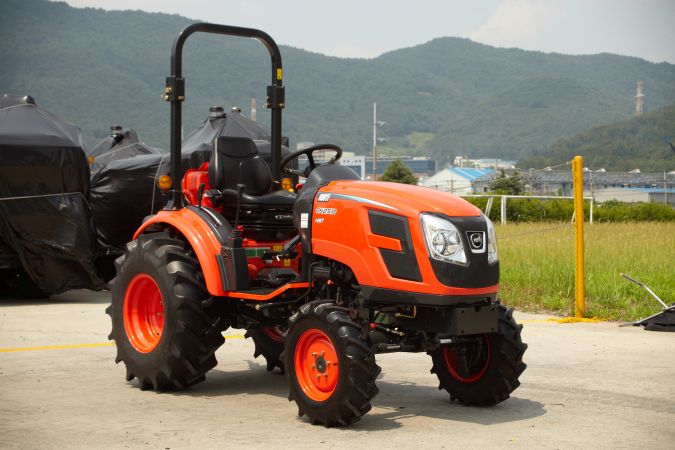

Kioti – CK2510H

The new eco-friendly engine provides powerful performance and improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the 24.5 HP engine offers the operator a quiet work environment with powerful performance. The HST model features a Hi/Low Range transmission to maximize performance and efficiency. The 11.3 gallon minimum hydraulic pump capacity allows for faster implement work and better overall work efficiency. The new streamlined hood design improves visibility and serviceability for the operator. A vertical opening hood allows for easy access to the air filter, fluid service, fuse box, and electrical components. The standard fold-down roll bar makes it quick and easy to maneuver in low clearance areas.

Categories: , Tags: , ,

Weight w/ Ag Tires w/ Cab: n/a
Weight w/ Ag Tires w/ ROPS: 2,260 lbs.
Control Type: Position
Lift Capacity, 24″ aft of hitch, lb(kg): 1,203 lbs.
3-Point Hitch Standard Category (Optional Category): Category #1
Main Pump Capacity: 11.3 gpm
Total Pump Flow: 11.3 gpm
Turning Radius w/o Brake: n/a
Turning Radius w/ Brake: 8.3 feet (Min.)
Rear Tread Ag Tires – Max: n/a
Rear Tread Ag Tires – Min: 37.4 in.
Front Tread Ag Tires – Max: n/a
Front Tread Ag Tires – Min: 37.8 in.
Ground Clearance: 13.4 in (Min.)
Wheelbase: 59.8 in.
From Top of the Highest Point: 82.8 in. (w/ROPS)
Height from Top of ROPS Folded: 82.8 in.
Height from Top of Cab: n/a
Height from Top of ROPS: 82.8 in.
Width: 49.2 in.
Length w/ 3-point hitch: 109.8 in.
Clutch: Dry Single
Brakes: Wet Disc Type
Front PTO Speeds: n/a
Mid PTO Speeds: 2000 (Optional)
Rear PTO Speeds(2nd): n/a
Rear PTO Speeds(1st): 540 rpm
PTO Power: 19.8 HP
PTO Type Trans: Transmission
Max. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 10.7 mph
Min. Travel Speed of Forward w/ Ag1 @ Engine rated speed: 0 mph
No. of Travel Speed Forward / Reverse: Infinitely Variable
Transmission Type: Hydrostatic
Pre-heating System: glo Plugs
Fuel Tank Capacity: 6.6 gal.
Displacement: 85 cu. in.
Aspiration: Natural
Fuel Type: Diesel
No. of Cylinder: 3
Rated Speed: 2600 rpm
Engine Gross Power: 24.5 HP
Engine Model: 3A139LFB
